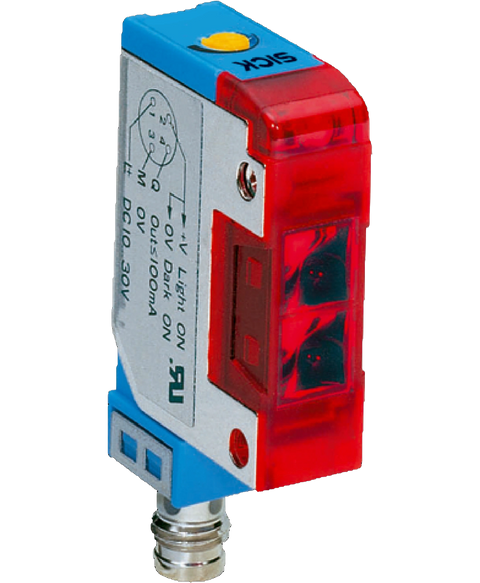

SICK WL170-P420
Discontinued by manufacturer, photoelectric sensor, retro-reflective, visible red led, 0-0.8 meter sensing range, 10-30VDC, pnp light,dark switching, 4-pin m8 connector, (6010186), suggested replacement: gl6-p4211
This SICK WL170-P420 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805617918.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) | 12 mm x 37 mm x 28.6 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.1 m ... 0.8 m 1) |
| Sensing range | 0.1 m ... 0.6 m 2) |
| Type of light | Visible red light |
| Light source | LED |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 1) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Response time | ≤ 0.7 ms 2) |
| Attenuation along light beam | ≥ 20 % |
| Connection type | Male connector M8, 4-pin |
| Housing material | Stainless steel, Stainless steel/ABS |
| Optics material | Plastic, PC |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| MTTF D | 1,524 years |
| DC avg | 0 % |
| eCl@ss 5.0 | 27270902 |
| eCl@ss 5.1.4 | 27270902 |
| eCl@ss 6.0 | 27270902 |
| eCl@ss 6.2 | 27270902 |
| eCl@ss 7.0 | 27270902 |
| eCl@ss 8.0 | 27270902 |
| eCl@ss 8.1 | 27270902 |
| eCl@ss 9.0 | 27270902 |
| eCl@ss 10.0 | 27270902 |
| eCl@ss 11.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
