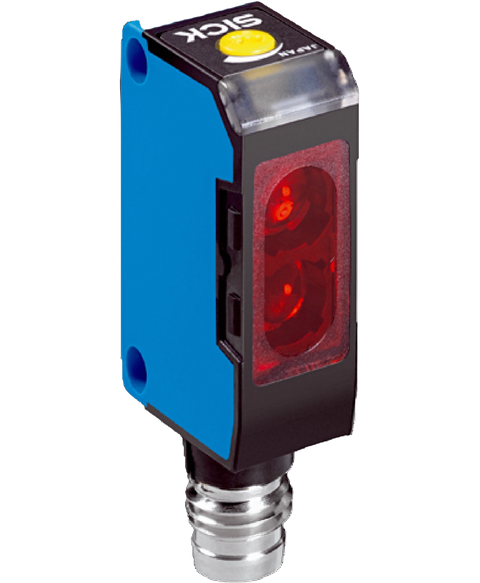

SICK WL150-P420
Discontinued by manufacturer, photoelectric retro-reflective sensor, dual lens, miniature w150, 0.1-0.7 m range, pnp light,dark switching, 10-30VDC, 4 pin m8 male connector, 6020688
This SICK WL150-P420 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805618246.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | With minimum distance to reflector (dual lens system) |
| Dimensions (W x H x D) | 10 mm x 28 mm x 17.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.01 m ... 0.7 m 1) |
| Sensing range | 0.01 m ... 0.6 m 1) |
| Focus | Approx. 7.5° |
| Type of light | Visible red light |
| Light source | LED 2) |
| Angle of dispersion | Approx. 7.5° |
| Adjustment | Potentiometer, 270° |
| Special feature | Detecting transparent objects |
| Special applications | Detecting transparent objects |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Attenuation along light beam | > 20 % |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | A 6) B 7) C 8) D 9) |
| Protection class | II |
| Weight | 7 g |
| Polarizing filter | ✔ |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PC |
| Enclosure rating | IP67 |
| Items supplied | BEF-W150-A mounting bracket, Reflector PL20A |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| Phase Status | Phased Out |
