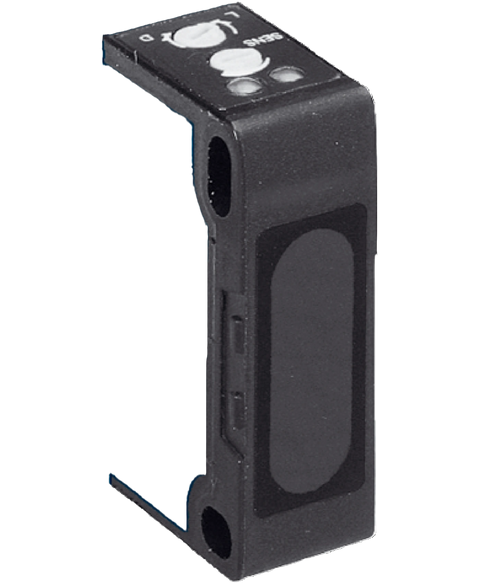

SICK WL140-2N430
Discontinued by manufacturer, photoelectric sensor, retro-reflective, red led, 0-6.5 meter sensing range, 10-30VDC, npn output, light,dark, m8 connector, (6024795)
This SICK WL140-2N430 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805596073.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) | 11 mm x 31 mm x 20 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.01 m ... 6.5 m 1) |
| Sensing range | 0.01 m ... 5 m 1) |
| Type of light | Visible red light |
| Light source | LED |
| Wave length | 680 nm |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 1) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark rotary switch |
| Response time | ≤ 0.5 ms 2) |
| Connection type | Male connector M8, 4-pin |
| Housing material | Plastic, PBT |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| MTTF D | 1,402 years |
| DC avg | 0 % |
| eCl@ss 5.0 | 27270902 |
| eCl@ss 5.1.4 | 27270902 |
| eCl@ss 6.0 | 27270902 |
| eCl@ss 6.2 | 27270902 |
| eCl@ss 7.0 | 27270902 |
| eCl@ss 8.0 | 27270902 |
| eCl@ss 8.1 | 27270902 |
| eCl@ss 9.0 | 27270902 |
| eCl@ss 10.0 | 27270902 |
| eCl@ss 11.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
