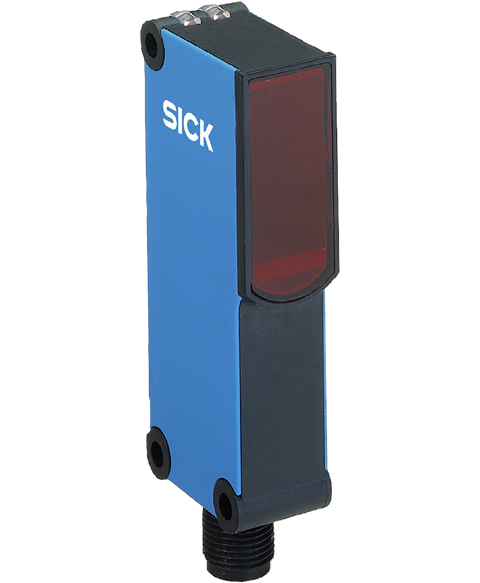

SICK WL14-2P430
Discontinued by manufacturer, photoelectric retro-reflective sensor, dual lens, w14-2, 0.15-6 m range, led visible red light, pnp light,dark switching, 10-30VDC, 4 pin m12 male connector, 1026049, replaced by: wla16p-24862130a00 or wla16p-24162100a00
This SICK WL14-2P430 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805754815.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 17.6 mm x 75.5 mm x 33.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.15 m ... 6 m 1) |
| Sensing range | 0.15 m ... 4 m 1) |
| Focus | Approx. 2° |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 140 mm (4 m) |
| Angle of dispersion | Approx. 2° |
| Wave length | 645 nm |
| Adjustment | None |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 35 mA 3) |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 2.5 ms 4) |
| Switching frequency | 200 Hz 5) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 6) C 7) D 8) |
| Weight | 40 g |
| Polarisation filter | ✔ |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| MTTF D | 2,710 years |
| DC avg | 0 % |
| EU declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
