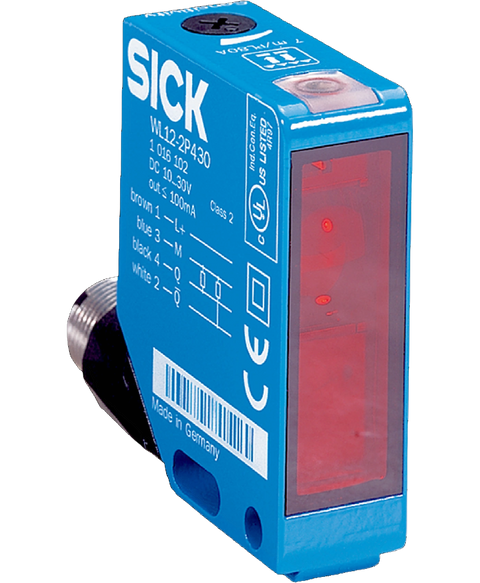

SICK WL12-2P430
Discontinued by manufacturer, photoelectric sensor, retro-reflective, part NO.: 1016102, rectangular, led light source, visible red light, pnp reflex, polarized, 0-7m range, 80A, 4 pin, 10-30VDC, potentiometer adjustment
This SICK WL12-2P430 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805603391.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) | 15 mm x 49 mm x 41.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 7 m 1) |
| Sensing range | 0 m ... 5 m 1) |
| Type of light | Visible red light |
| Light source | LED |
| Adjustment | Potentiometer |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | pp |
| Current consumption | 30 mA 1) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Response time | ≤ 330 µs 2) |
| Connection type | Male connector M12, 4-pin |
| Housing material | Metal, zinc diecast |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| Phase Status | Phased Out |
