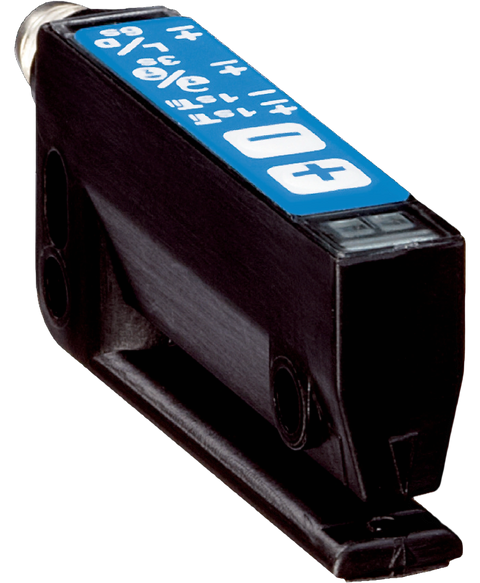

SICK WFS3-40P415
Pe slot sensor, pnp, dark,light switching, m8 4-pin connector, 3mm width, (6043919)
This SICK WFS3-40P415 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Fork sensors range and is referenced internally as PartLogic SKU PL26805753920.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Optical detection principle |
| Dimensions (W x H x D) | 10 mm x 25 mm x 64.3 mm |
| Fork width | 3 mm |
| Fork depth | 42 mm |
| Light source | LED, Infrared light |
| Label detection | ✔ |
| Minimum detectable object (MDO) | Gap between Labels / Size of labels: 2 mm |
| Adjustment | Plus/minus button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) |
| Teach-in mode | 2-point teach-in Teach-in dynamic |
| MTTF D | 97 years |
| DC avg | 0 % |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | < 10 % |
| Current consumption | 20 mA |
| Initialization time | 20 ms |
| Switching frequency | 10 kHz |
| Stability of response time | ± 20 µs |
| Jitter | 40 µs |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = U V ≤ 2 V / LOW approx. 0 V |
| Switching mode | Light/dark switching |
| Output current I max. | 100 mA |
| Input, teach-in (ET) | PNP Teach: U > 5 V ... V Run: U < 4 V |
| Protection class | III |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | PA (glass-fiber reinforced) |
| Weight | Approx. 36 g |
| Ambient operating temperature | –20 °C ... +60 °C |
| Ambient temperature, storage | –30 °C ... +80 °C |
| Ambient light immunity | ≤ 10,000 lx |
| Shock load | According to EN 60068-2-27 |
| Enclosure rating | IP65 |
| UL File No. | NRKH.E191603 |
| ECLASS 5.0 | 27270909 |
| ECLASS 5.1.4 | 27270909 |
| ECLASS 6.0 | 27270909 |
| ECLASS 6.2 | 27270909 |
| ECLASS 7.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 8.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 10.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
