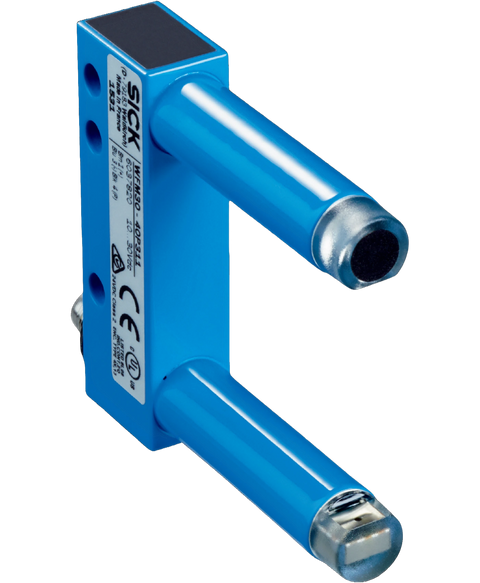

SICK WFM80-60P311
(6037829), photoelectric slot sensor, pnp, light switching, m8 3-pin connector, 80mm width, 60mm depth, (6037829)
This SICK WFM80-60P311 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Fork sensors range and is referenced internally as PartLogic SKU PL26805603357.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Optical detection principle |
| Dimensions (W x H x D) | 10 mm x 100 mm x 77.5 mm |
| Fork width | 80 mm |
| Fork depth | 60 mm |
| Light source | LED, visible red light |
| Minimum detectable object (MDO) | 0.8 mm |
| Adjustment | None |
| MTTF D | 131 years |
| DC avg | 0 % |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | < 10 % |
| Current consumption | < 20 mA |
| Initialization time | 140 ms |
| Switching frequency | 4 kHz |
| Stability of response time | ± 15 µs |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = V S – ≤ 1.5 V / LOW = 0 V NPN: HIGH = approx. V S / LOW ≤ 1.5 V |
| Switching mode | Light switching |
| Output current I max. | 100 mA |
| Protection class | III |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | Aluminum |
| Weight | Approx. 80 g ... 190 g |
| Ambient operating temperature | –10 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +80 °C |
| Ambient light immunity | ≤ 10,000 lx |
| Shock load | According to EN 60068-2-27 |
| Enclosure rating | IP67 |
| UL File No. | NRKH.E191603 & NRKH7.E191603 |
| ECLASS 5.0 | 27270909 |
| ECLASS 5.1.4 | 27270909 |
| ECLASS 6.0 | 27270909 |
| ECLASS 6.2 | 27270909 |
| ECLASS 7.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 8.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 10.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
