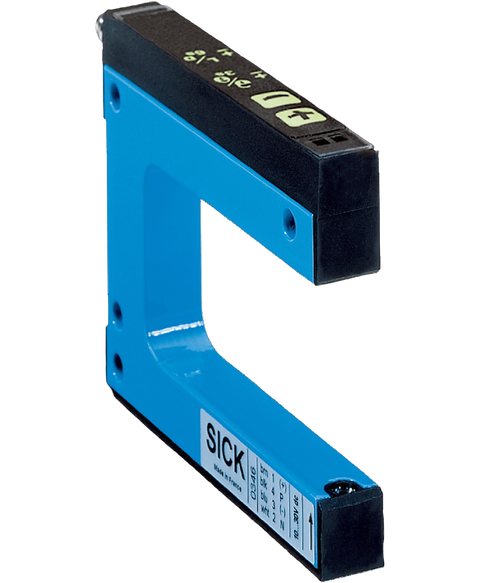

SICK WF15-40B410
Fork sensor, 15mm width, 42mm depth, infrared led, button adjustment, 10-30VDC, pnp,npn, light,dark, 4-pin m8 connector, IP65, (6028430)
This SICK WF15-40B410 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Fork sensors range and is referenced internally as PartLogic SKU PL26805608155.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Optical detection principle |
| Dimensions (W x H x D) | 10 mm x 45 mm x 57 mm |
| Fork width | 15 mm |
| Fork depth | 42 mm |
| Light source | LED, Infrared light |
| Label detection | ✔ |
| Minimum detectable object (MDO) | 0.2 mm |
| Adjustment | Plus/minus button (Sensitivity, light/dark switching, key lock) |
| Teach-in mode | — |
| Output function | Light/darkswitching, selectable via button |
| MTTF D | 97 years |
| DC avg | 0 % |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | < 10 % |
| Current consumption | 40 mA |
| Initialization time | 100 ms |
| Switching frequency | 10 kHz |
| Stability of response time | ± 20 µs |
| Jitter | 40 µs |
| Switching output | PNP/NPN |
| Switching output (voltage) | PNP: HIGH = U V ≤ 2 V / LOW approx. 0 V NPN: HIGH = approx. U V / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current I max. | 100 mA |
| Protection class | III |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | Aluminum |
| Weight | Approx. 36 g ... 160 g |
| Ambient operating temperature | –20 °C ... +60 °C |
| Ambient temperature, storage | –30 °C ... +80 °C |
| Ambient light immunity | ≤ 10,000 lx |
| Shock load | According to EN 60068-2-27 |
| Enclosure rating | IP65 |
| UL File No. | NRKH.E191603 |
| ECLASS 5.0 | 27270909 |
| ECLASS 5.1.4 | 27270909 |
| ECLASS 6.0 | 27270909 |
| ECLASS 6.2 | 27270909 |
| ECLASS 7.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 8.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 10.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
