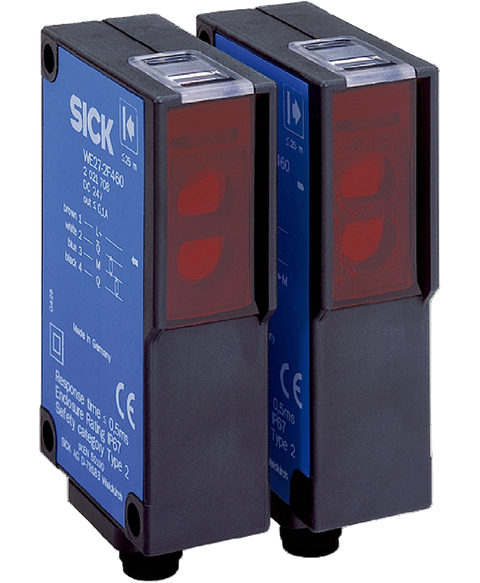

SICK WE27-2F450S05
Discontinued by manufacturer, single beam safety switch, receiver 10-30VDC, 100mA, m12 male 4 pin connector, 500 us response time, led display, -40 to +75 degree c, 2018933
This SICK WE27-2F450S05 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805675527.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Number of beams | 1 |
| Response time | ≤ 500 µs |
| Front screen heating | ✔ |
| Connection type | Male connector M12, 4-pin |
| Diagnostic display | LED |
| Integration via Flexi Soft safety controller | CANopen, DeviceNet™, EtherCAT®, EtherNet/IP™, Modbus TCP, PROFIBUS DP, PROFINET 1) |
| Power consumption | ≤ 45 |
| Switching current | ≤ 100 mA |
| Ambient operating temperature | –40 °C ... +60 °C |
| Storage temperature | –40 °C ... +75 °C |
| ECLASS 5.0 | 27272701 |
| ECLASS 5.1.4 | 27272701 |
| ECLASS 6.0 | 27272701 |
| ECLASS 6.2 | 27272701 |
| ECLASS 7.0 | 27272701 |
| ECLASS 8.0 | 27272701 |
| ECLASS 8.1 | 27272701 |
| ECLASS 9.0 | 27272701 |
| ECLASS 10.0 | 27272701 |
| ECLASS 11.0 | 27272701 |
| ECLASS 12.0 | 27272701 |
| ETIM 5.0 | EC001831 |
| ETIM 6.0 | EC001831 |
| ETIM 7.0 | EC001831 |
| ETIM 8.0 | EC001831 |
| UNSPSC 16.0901 | 46171620 |
| Phase Status | Phased Out |
