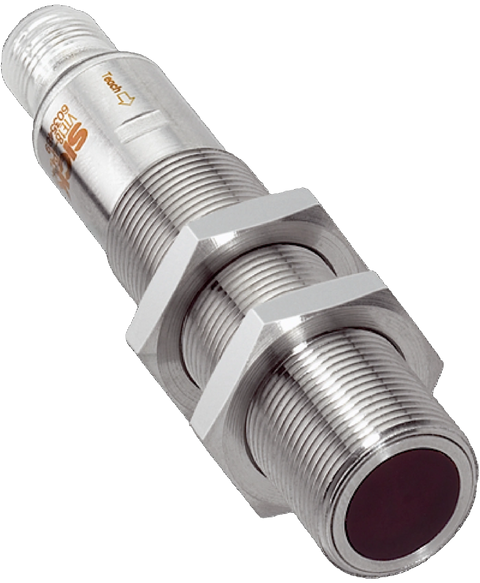

SICK VTE18-4N4240
Photoelectric sensor, cylindrical, optical axis - axial, 5mm - 350mm sensing range (max 400mm), 400mm light spot size, 78mm housing length, m18 x 1 thread dia(housing), led light source,infrared light type, potentiometer-270 deg adj, metal, (6013254)
This SICK VTE18-4N4240 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805680060.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 83 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 83 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0 mm ... 450 mm 1) |
| Sensing range | 5 mm ... 400 mm |
| Focus | Approx. 4.5° |
| Type of light | Infrared light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 60 mm (400 mm) |
| Angle of dispersion | Approx. 4.5° |
| Wave length | 880 nm |
| Adjustment | Single teach-in button (Sensing range) Manual, via Touch-Teach-in |
| Special applications | Hygienic and washdown zones |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 35 mA 3) |
| Switching output | NPN 4) |
| Switching mode | Light/dark switching 4) |
| Switching mode selector | Selectable via L/D control cable |
| Signal voltage NPN HIGH/LOW | Approx. VS / |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 1 ms 5) |
| Switching frequency | 500 Hz 6) |
| Connection type | Male connector M12, 4-pin 7) |
| Circuit protection | A 8) B 9) C 10) D 11) |
| Protection class | III |
| Weight | 120 g |
| Housing material | Metal, Stainless steel V4A (1.4404, 316L) |
| Optics material | Plastic, Plan, PPS (Grilamid) |
| Enclosure rating | IP67 IP68 IP69K 12) |
| Ambient operating temperature | –25 °C ... +80 °C 13) |
| Ambient temperature, storage | –40 °C ... +80 °C |
| UL File No. | FDA, UL No. NRKH.E181493 & cUL No. NRKH7.E181493 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270903 |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Active |
