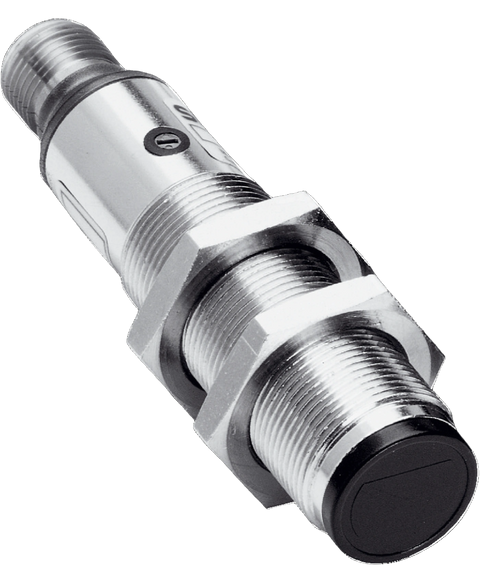

SICK VTB18-0P0240S01
Proximity switch, 10-30VDC, 30-90mm sensing range, 4 pin, m12 plug type, 6032862
This SICK VTB18-0P0240S01 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805598745.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 18 mm x 18 mm x 79.4 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 79.4 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 30 mm ... 92 mm 1) |
| Sensing range | 30 mm ... 90 mm 2) |
| Type of light | Visible red light |
| Light source | LED 3) |
| Light spot size (distance) | Ø 3 mm (90 mm) |
| Wave length | 660 nm |
| Adjustment | Potentiometer, 270° (Sensing range) Potentiometer, 270°, red sealed to Datacode 1025 |
| Special features | Potentiometer, 270°, red sealed to Datacode 1025 |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP 4) |
| Switching mode | Light/dark switching 4) |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 1.25 ms 5) |
| Switching frequency | 400 Hz 6) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 7) B 8) C 9) D 10) |
| Protection class | III |
| Weight | 120 g |
| Special device | ✔ |
| Housing material | Metal, Nickel-plated brass |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +70 °C |
| Ambient temperature, storage | –55 °C ... +80 °C |
| UL File No. | NMFT2.E175606 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Active |
