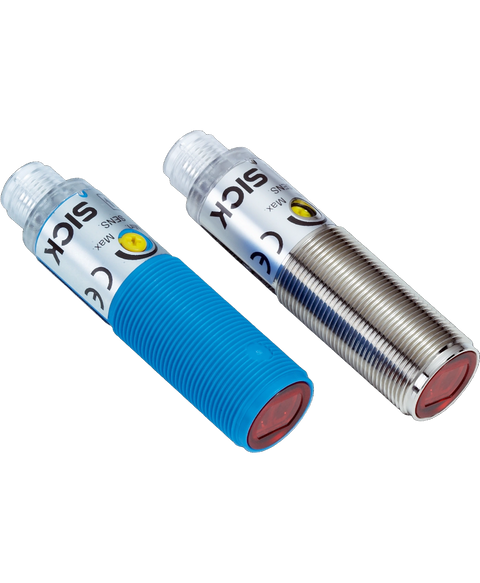

SICK VT180-P410
Discontinued by manufacturer, proximity sensor, photoelectric, cylindrical design, 69mm housing length, 10-30VDC, sensing range 0-110mm, infrared light type, led light source, pnp switching output, light,dark switching mode, replaced by vtf180-2p42412
This SICK VT180-P410 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805463955.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 69 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 69 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0 mm ... 130 mm 1) |
| Sensing range | 0 mm ... 110 mm 2) |
| Type of light | Infrared light |
| Light source | LED 3) |
| Light spot size (distance) | Ø 65 mm (110 mm) |
| Wave length | 920 nm |
| Adjustment | Potentiometer, 270° (Sensing range) |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP 4) |
| Switching mode | Light/dark switching 4) |
| Switching mode selector | Selectable via L/D control cable |
| Signal voltage PNP HIGH/LOW | Approx. VS – 1.0 V / 0 V |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 1.5 ms 5) |
| Switching frequency | 333 Hz 6) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 7) C 8) D 9) |
| Protection class | III |
| Weight | 65 g |
| Housing material | Metal, Nickel-plated brass, PBT/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66 |
| Items supplied | Fastening nuts (2 x) |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| ECLASS 5.0 | 27270903 |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
