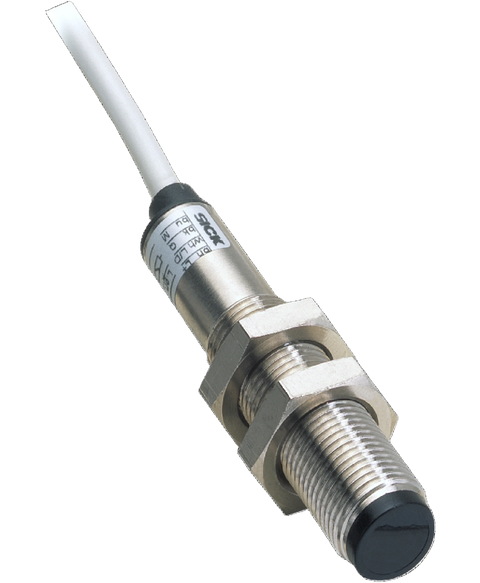

SICK VT12T-2N112
Cylindrical photoelectric sensor, npn, teach-in
This SICK VT12T-2N112 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805599057.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 12 mm x 12 mm x 54.5 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 54.5 mm |
| Thread diameter (housing) | Round connector M12 x 1 |
| Sensing range max. | 0 mm ... 115 mm |
| Sensing range | 2 mm ... 100 mm |
| Focus | Approx. 11.4° |
| Type of light | Infrared light |
| Light source | LED |
| Light spot size (distance) | Ø 20 mm (100 mm) |
| Angle of dispersion | Approx. 11.4° |
| Wave length | 880 nm |
| Adjustment | Single teach-in button, Selectable via control input C (Sensing range, Sensing range) |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 20 mA |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via control input C |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 1.25 ms |
| Switching frequency | 400 Hz |
| Connection type | Cable, 4-wire, 2 m |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.14 mm² |
| Cable diameter | Ø 3.75 mm |
| Circuit protection | A B C D |
| Protection class | III |
| Weight | 54 g |
| Housing material | Metal, Nickel-plated brass/PA |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +70 °C |
| Ambient temperature, storage | –25 °C ... +70 °C |
| UL File No. | E175606 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| ECLASS 5.0 | 27270903 |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
