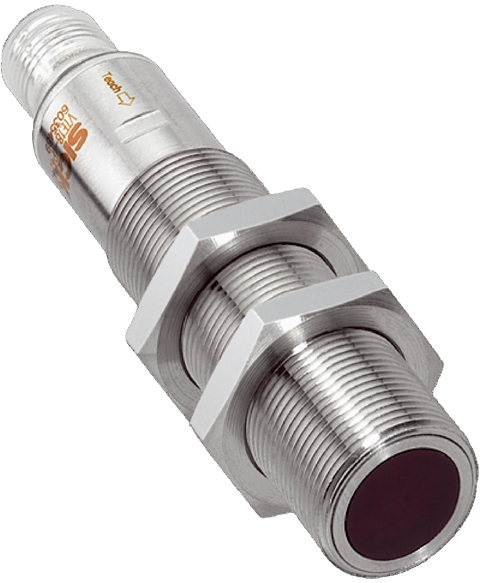

SICK VL18-4P3640
Photoelectric sensor, v18 sensors, retro-reflective, cylindrical, m18 x 1 thread diameter (housing), axial, 0.05m-3.7m max. sensing range, 150mm light spot distance
This SICK VL18-4P3640 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26801447057.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) | 98 mm |
| Housing design (light emission) | Cylindrical, straight |
| Sensing range max. | 0.1 m ... 5 m 1) |
| Sensing range | 0.1 m ... 4.5 m 1) |
| Focus | Approx. 1.5° |
| Type of light | Visible red light |
| Light source | LED |
| Angle of dispersion | Approx. 1.5° |
| Adjustment | Potentiometer |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 35 mA 1) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Response time | ≤ 1 ms 2) |
| Connection type | Male connector M12, 4-pin |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP69K |
| Ambient operating temperature | –25 °C ... +80 °C |
| Ambient temperature, storage | –25 °C ... +80 °C |
| UL File No. | FDA, UL No. NRKH.E181493 & cUL No. NRKH7.E181493 |
| Phase Status | Active |
