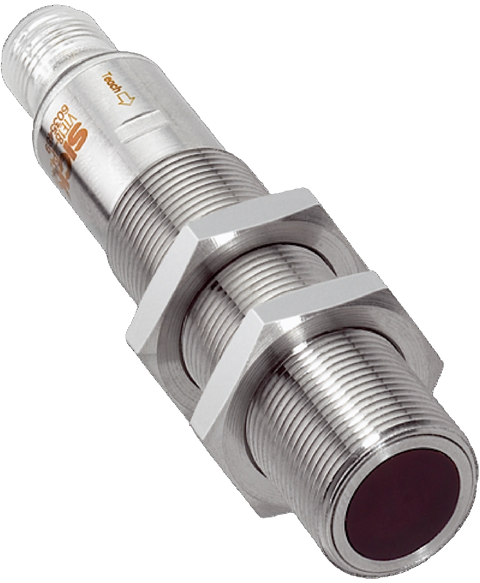

SICK VL18-4P2240V
Sensing sensor, 0.035-4 meter sensing range, 10-30VDC, 100mA, 4 pin, m12 plug
This SICK VL18-4P2240V is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805661870.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | With minimum distance to reflector (dual lens system) |
| Dimensions (W x H x D) | 18 mm x 18 mm x 83 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 83 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0.035 m ... 4.5 m 1) |
| Sensing range | 0.035 m ... 4 m 1) |
| Focus | 3° |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 60 mm (1 m) |
| Angle of dispersion | 3° |
| Wave length | 660 nm |
| Adjustment | Single teach-in button (Sensing range) Manual, via Touch-Teach-in |
| Special feature | Detecting transparent objects |
| Special applications | Hygienic and washdown zones, Detecting transparent objects |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 35 mA 3) |
| Switching output | PNP 4) |
| Switching mode | Light/dark switching 4) |
| Switching mode selector | Selectable via L/D control cable |
| Signal voltage PNP HIGH/LOW | Approx. VS – 2.0 V / 0 V |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 1 ms 5) |
| Switching frequency | 500 Hz 6) |
| Attenuation along light beam | ≥ 20 % |
| Connection type | Male connector M12, 4-pin 7) |
| Circuit protection | A 8) B 9) C 10) D 11) |
| Protection class | III |
| Weight | 120 g |
| Housing material | Metal, Stainless steel V4A (1.4404, 316L) |
| Optics material | Plastic, Plan, PPS (Grilamid) |
| Enclosure rating | IP67 IP68 IP69K 12) |
| Ambient operating temperature | –25 °C ... +80 °C 13) |
| Ambient temperature, storage | –40 °C ... +80 °C |
| UL File No. | FDA, UL No. NRKH.E181493 & cUL No. NRKH7.E181493 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Active |
