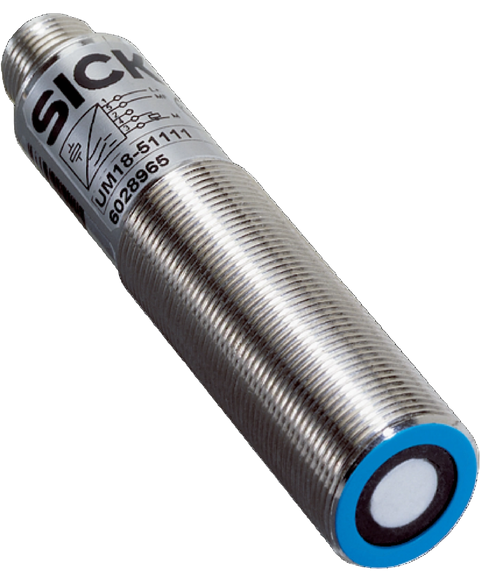

SICK UM18-51111
Discontinued by manufacturer, ultrasonic sensor, dc 10 v... 30 v 1, cylindrical, male connector, m12, 5-pin, 6028965, replaced by um18-21112b211
This SICK UM18-51111 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Ultrasonic sensors range and is referenced internally as PartLogic SKU PL26805602204.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Operating range, limiting range | 30 mm ... 250 mm, 350 mm |
| Resolution | ≥ 0.08 mm |
| Repeatability | ± 0.15 % 1) |
| Measurement accuracy | 0.17 % / K 2) |
| Response time | 32 ms |
| Switching frequency | ± 15 Hz |
| Output time | 8 ms |
| Ultrasonic frequency (typical) | 320 kHz |
| Detection area (typical) | See diagrams |
| Additional function | Set switching mode: Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB) Teach-in of digital output Multi functional input: external teach Reset to factory default |
| Number | 1 1) |
| Type | PNP |
| Maximum output current I A | ≤ 500 mA |
| Multifunctional input (MF) | 1 x |
| Hysteresis | 2 mm |
| Supply voltage U B | DC 10 V ... 30 V 1) |
| Power consumption | ≤ 1.2 W 2) |
| Enclosure rating | IP65 / IP67 |
| Dimensions (W x H x D) | 18 mm x 18 mm x 73.3 mm |
| Design | Cylindrical |
| Sending axis | Straight |
| Housing material | Metal, plastic (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Weight | 55 g |
| Thread size | M18 x 1 |
| Connection type | Male connector, M12, 5-pin |
| Ambient temperature, operation | –25 °C ... +70 °C |
| Ambient temperature, storage | –40 °C ... +85 °C |
| ECLASS 5.0 | 27270804 |
| ECLASS 5.1.4 | 27270804 |
| ECLASS 6.0 | 27270804 |
| ECLASS 6.2 | 27270804 |
| ECLASS 7.0 | 27270804 |
| ECLASS 8.0 | 27270804 |
| ECLASS 8.1 | 27270804 |
| ECLASS 9.0 | 27270804 |
| ECLASS 10.0 | 27270804 |
| ECLASS 11.0 | 27270804 |
| ECLASS 12.0 | 27272806 |
| ETIM 5.0 | EC001846 |
| ETIM 6.0 | EC001846 |
| ETIM 7.0 | EC001846 |
| ETIM 8.0 | EC001846 |
| UNSPSC 16.0901 | 41111960 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Phase Status | Phased Out |
