SICK UFN3-70B413

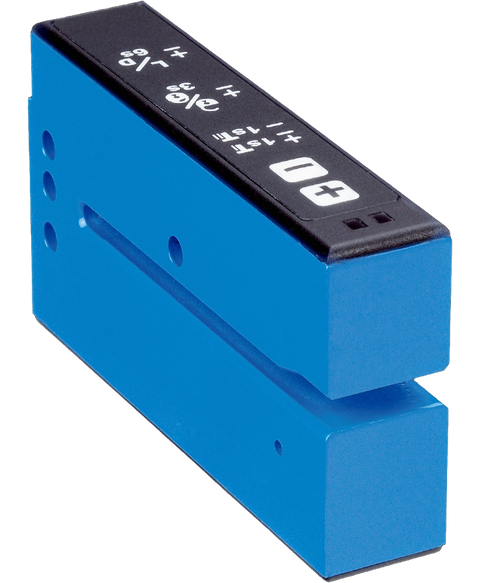

Fork sensor, series uf, ultrasonic detection, 3mm fork width, 69mm fork depth, pnp , npn, m8 4-pin male connector, 10-30VDC, 100mA, aluminum, IP65
This SICK UFN3-70B413 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Fiber optic sensors range and is referenced internally as PartLogic SKU PL26801474437.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Ultrasonic detection principle |
| Housing design | Fork shaped |
| Dimensions (W x H x D) | 18 mm x 47.5 mm x 92.5 mm |
| Fork width | 3 mm |
| Fork depth | 69 mm |
| Label detection | ✔ |
| Minimum detectable object (MDO) | Gap between Labels / Size of labels: 2 mm |
| Adjustment | Plus/minus button (Teach-in, sensitivity, light/dark switching) |
| Teach-in mode | 2-point teach-in Teach-in dynamic |
| MTTF D | 207 years |
| DC avg | 0 % |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | < 10 % |
| Current consumption | 40 mA |
| Initialization time | 100 ms |
| Switching frequency | 1.5 kHz |
| Switching output | PNP NPN |
| Switching output (voltage) | PNP: HIGH = U V ≤ 2 V / LOW approx. 0 V NPN: HIGH = approx. U V / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current I max. | 100 mA |
| Protection class | III |
| Circuit protection | Output Q short-circuit protected Interference pulse suppression |
| Housing material | Aluminum |
| Weight | + 95 g |
| Ambient operating temperature | +5 °C ... +55 °C |
| Ambient temperature, storage | –20 °C ... +70 °C |
| Shock load | According to EN 60068-2-27 |
| EMC | EN 60947-5-2 |
| Enclosure rating | IP65 |
| UL File No. | NRKH.E191603 & NRKH7.E191603 |
| ECLASS 5.0 | 27270909 |
| ECLASS 5.1.4 | 27270909 |
| ECLASS 6.0 | 27270909 |
| ECLASS 6.2 | 27270909 |
| ECLASS 7.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 8.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 10.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
