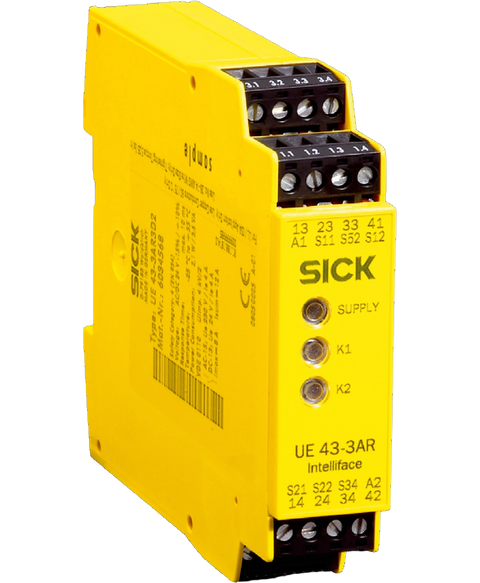

SICK UE43-3AR3D2
Discontinued by manufacturer, (6034568) safety relay for interlocks and e-stops, pluggable terminals, auto reset, 3 safe,1aux outputs, 24VDC,ue43-3ar3d2, safety relay, ue43-3ar3d2 safety-rel
This SICK UE43-3AR3D2 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805624570.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| B 10d parameter | 3 x 10 5 switching cycles (AC-15, 230 V, I = 5 A) 2 x 10 6 switching cycles (DC-15, 230 V, I = 2 A) 7 x 10 6 switching cycles (DC-13, 24 V, I = 1 A) |
| PFH D (mean probability of a dangerous failure per hour) | 1.30 x 10 -8 (EN ISO 13849) |
| T M (mission time) | 20 years (EN ISO 13849) |
| Stop category | 0 (EN 60204-1) |
| Voltage supply | A1, A2 |
| Output circuit > 25 V AC / 60 V DC, Output circuit ≤ 25 V AC / 60 V DC | PELV, PELV or SELV |
| Supply voltage V s | A1, A2 |
| Residual ripple | (≤ 2.4 V pp ) 1) |
| Power consumption | (≤ 2.8 VA (AC)) (≤ 1.3 W (DC)) |
| Overvoltage category | II |
| Rated insulation voltage U i | 300 V AC |
| Rated impulse withstand voltage U imp | 4 kV |
| Test voltage | 2 kV (50 Hz) (EN 60439-1) |
| Control voltage | 22 V DC (19.2 V DC ... 40 V DC) |
| Control current | ≤ 250 mA |
| Input voltage | 22 V DC (19.2 V DC ... 26.6 V DC) |
| Input current | 25 mA ≤ 100 mA | 5 mA |
| Cable resistance | ≤ 70 Ω | ≤ 25 Ω |
| Automatic | ≤ 350 ms |
| Response time | (≤ 10 ms) 1) |
| Number of enabling current paths (N/O) | 3, relevant for safety |
| Number of signaling current paths (normally closed) | 1, not safety-relevant |
| Contact type | Positively driven |
| Contact material | Silver alloy, gold flashed |
| Enabling current path | 5 V AC/DC ... 300 V AC/DC | 10 mA ... 8 A |
| Signaling current path | 5 V AC/DC ... 300 V AC/DC | 10 mA ... 8 A |
| Usage category | AC-15/DC-13 (EN 60947-5-1) |
| Rated operating current (voltage) | 4 A (230 V AC) 360 switching cycles/h 4 A (24 V DC) 3600 switching cycles/h |
| Switching frequency | ≤ 3600/h |
| Mechanical life (relay contacts) | 1 x 10 7 switching cycles |
| Electrical life (relay contacts) | 1 x 10 6 switching cycles |
| Dimensions (W x H x D) | 22.5 mm x 114 mm x 96.5 mm |
| Contamination rating | 3 (EN 50178) |
| Weight | 0.27 kg |
| ECLASS 5.0 | 27371990 |
| ECLASS 5.1.4 | 27371990 |
| ECLASS 6.0 | 27371819 |
| ECLASS 6.2 | 27371819 |
| ECLASS 7.0 | 27371819 |
| ECLASS 8.0 | 27371819 |
| ECLASS 8.1 | 27371819 |
| ECLASS 9.0 | 27371819 |
| ECLASS 10.0 | 27371819 |
| ECLASS 11.0 | 27371819 |
| ECLASS 12.0 | 27371819 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 41113704 |
| Phase Status | Phased Out |
