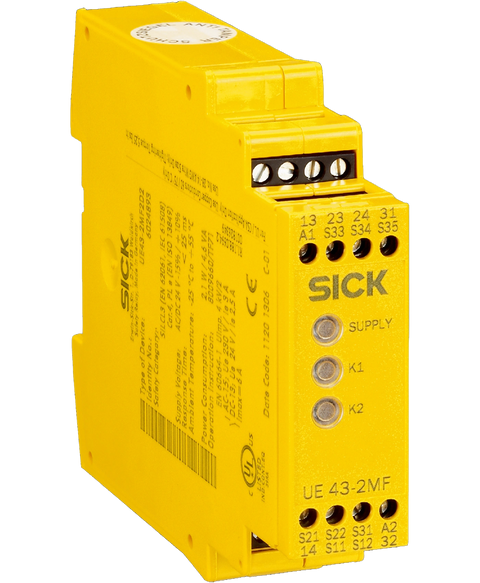

SICK UE43-2MF2D2
Discontinued by manufacturer, safety relay, fixed screw terminals, 1 channel, 2 pnp outputs, 30mm resolution, 24 V AC,DC supply, sick # 6024893, succeeded by rly3-emss100
This SICK UE43-2MF2D2 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805754200.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| B 10d parameter | 1.26 x 10 6 switching cycles (AC-15, 230 V, I = 1.5 A) 5.9 x 10 6 switching cycles (AC-15, 230 V, I = 0.75 A) 4.35 x 10 5 switching cycles (DC-13, 24 V, I = 2.5 A) 1 x 10 7 switching cycles (DC-13, 24 V, I = 0.63 A) |
| PFH D (mean probability of a dangerous failure per hour) | 3.0 x 10 -8 (EN ISO 13849) |
| T M (mission time) | 20 years (EN ISO 13849) |
| Stop category | 0 (EN 60204-1) |
| Voltage supply | A1, A2 |
| Output circuit > 25 V AC / 60 V DC | PELV |
| Output circuit ≤ 25 V AC / 60 V DC | PELV or SELV |
| Supply voltage V s | A1, A2 |
| Residual ripple | (≤ 2.4 V pp ) 1) |
| Power consumption | (≤ 4.6 VA (AC)) (≤ 2.6 W (DC)) |
| Overvoltage category | II |
| Rated insulation voltage U i | 300 V AC |
| Rated impulse withstand voltage U imp | 4 kV |
| Test voltage | 2 kV (50 Hz) (EN 60439-1) |
| Control voltage | 22 V DC (≥ 17.4 V DC) |
| Control current | 40 mA ... 100 mA |
| Short-circuit current | ≤ 2 A, between S33 / S11 and S21 |
| Short-circuit protection | PTC resistor |
| Manual | (≤ 40 ms) |
| Automatic | (≤ 500 ms) |
| Activation time of reset button | ≥ 50 ms |
| Synchronous time monitoring | ≤ 500 ms |
| Cable resistance | ≤ 35 Ω |
| Response time | 25 ms (≤ 25 ms) 1) |
| Number of enabling current paths (N/O) | 2, relevant for safety |
| Number of signaling current paths (normally closed) | 1, not safety-relevant |
| Contact type | Positively driven |
| Contact material | Silver alloy, gold flashed |
| Enabling current path | 10 V AC ... 230 V AC | 10 mA ... 6 A |
| Signaling current path | 10 V AC, 10 V DC ... 230 V AC, 300 V DC | 10 mA ... 6 A |
| Total current | ≤ 12 A |
| Usage category | AC-15/DC-13 |
| Rated operating current (voltage) | 4 A (230 V AC) 360 switching cycles/h 3 A (230 V AC) 3600 switching cycles/h 4 A (24 V DC) 360 switching cycles/h 2.5 A (24 V DC) 3600 switching cycles/h |
| Switching frequency | ≤ 3600/h |
| Mechanical life (relay contacts) | 1 x 10 7 switching cycles |
| Electrical life (relay contacts) | 1 x 10 5 switching cycles |
| Dimensions (W x H x D) | 22.5 mm x 114 mm x 96.5 mm |
| Contamination rating | 3 (EN 50178) |
| Weight | 0.2 kg |
| ECLASS 5.0 | 27371990 |
| ECLASS 5.1.4 | 27371990 |
| ECLASS 6.0 | 27371819 |
| ECLASS 6.2 | 27371819 |
| ECLASS 7.0 | 27371819 |
| ECLASS 8.0 | 27371819 |
| ECLASS 8.1 | 27371819 |
| ECLASS 9.0 | 27371819 |
| ECLASS 10.0 | 27371819 |
| ECLASS 11.0 | 27371819 |
| ECLASS 12.0 | 27371819 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 41113704 |
| Phase Status | Phased Out |
