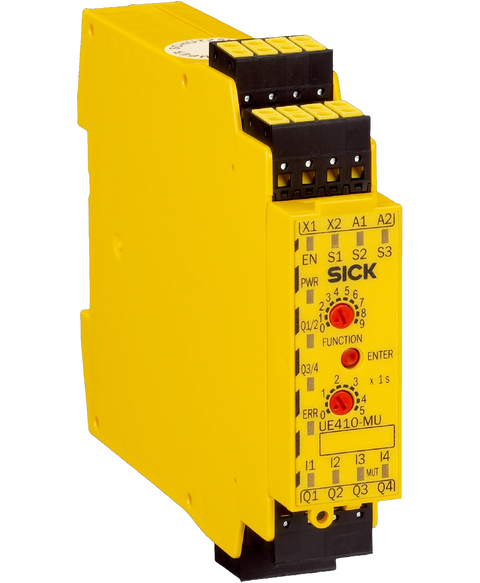

SICK UE410-MU3T5
Safety controller, flexi classic, 19.2-30VDC (24VDC nominal), 4 safety inputs , switching inputs, 4 safety outputs , 2 test outputs, 0-5 seconds delay time, -25 to 55 degree c, IP20,40, (6026136), replacement for: ue410-mu300s01
This SICK UE410-MU3T5 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805623229.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Module | Main module |
| Configuration method | Via rotary switch |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFH D (mean probability of a dangerous failure per hour) | 2.5 x 10 (EN ISO 13849) |
| T M (mission time) | 20 years (EN ISO 13849) |
| Restart interlock | Manual / automatic (configurable) |
| External device monitoring (EDM) | ✔ |
| AND operation | ✔ |
| OR operation | ✔ |
| Bypass | ✔ |
| Differentiation between man and material (muting) | ✔ |
| Inputs | 4 safety inputs 4 switching inputs |
| Number of muting sensors | 0 / 2 |
| Outputs | 4 safety outputs 2 test outputs |
| Delay time (outputs Q3/Q4) | 0 s ... 5 s |
| Connection type | Plug-in screw-type terminals |
| Display elements | LEDs |
| Protection class | III (EN 61140) |
| Type of voltage supply | PELV or SELV |
| Supply voltage V S | 24 V DC (19.2 V DC ... 30 V DC) |
| Residual ripple | ≤ 10 % |
| Power consumption | ≤ 3 W (DC) |
| Switch-on time | ≤ 60 s |
| Internal power consumption | ≤ 3 W (DC) |
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 120.8 mm |
| Weight | + 180 g |
| Housing | IP40 (EN 60529) |
| Terminals | IP20 (EN 60529) |
| Ambient operating temperature | –25 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | ≤ 95 %, Non-condensing |
| Climate conditions according to | EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) |
| Electromagnetic compatibility (EMC) | Class A (EN 61000-6-2, EN 55011) |
| Vibration resistance | 5 g RMS, 5 Hz ... 500 Hz (EN 60068-2-64) |
| ECLASS 5.0 | 27243001 |
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| cTUVus certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
