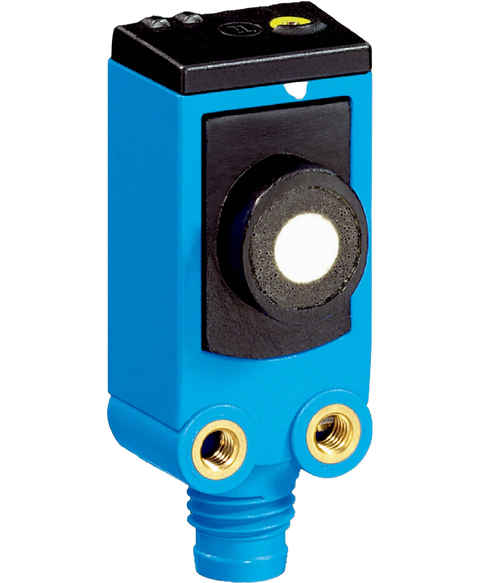

SICK UC4-13341
(6034669), ultrasonic sensor, uc4 series, 13-150mm detection range, 15-30VDC, 200mA, pnp, axial plug, -25 to +70 degrees c, IP65,67, (6034669)
This SICK UC4-13341 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Ultrasonic sensors range and is referenced internally as PartLogic SKU PL26805616307.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Operating range, limiting range | 13 mm ... 150 mm, 250 mm |
| Target | Natural objects |
| Resolution | ≥ 0.1 mm |
| Repeatability | ± 0.15 % |
| Measurement accuracy | ± 1 % |
| Temperature compensation | ✔ |
| Response time | 24 ms |
| Switching frequency | 30 Hz |
| Output time | 8 ms |
| Ultrasonic frequency (typical) | 380 kHz |
| Detection area (typical) | See diagrams |
| Additional function | Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, invertable digital output, teach-in button(s) (can be deactivated), reset to factory default |
| MTTF D | 101 years |
| DC avg | 0% |
| Number | 1 |
| Type | PNP |
| Maximum output current I A | ≤ 200 mA |
| Hysteresis | 2 mm |
| Supply voltage U B | DC 15 V ... 30 V |
| Power consumption | ≤ 0.75 W |
| Initialization time | < 300 ms |
| Indication | 2 x LED |
| Enclosure rating | IP65 / IP67 |
| Protection class | III |
| Dimensions (W x H x D) | 16 mm x 40.1 mm x 16.7 mm |
| Design | Rectangular |
| Sending axis | Straight |
| Housing material | Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Weight | 10 g |
| Connection type | Male connector, M8, 3-pin |
| Ambient temperature, operation | –25 °C ... +70 °C |
| Ambient temperature, storage | –40 °C ... +85 °C |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270804 |
| ECLASS 5.1.4 | 27270804 |
| ECLASS 6.0 | 27270804 |
| ECLASS 6.2 | 27270804 |
| ECLASS 7.0 | 27270804 |
| ECLASS 8.0 | 27270804 |
| ECLASS 8.1 | 27270804 |
| ECLASS 9.0 | 27270804 |
| ECLASS 10.0 | 27270804 |
| ECLASS 11.0 | 27270804 |
| ECLASS 12.0 | 27272806 |
| ETIM 5.0 | EC001846 |
| ETIM 6.0 | EC001846 |
| ETIM 7.0 | EC001846 |
| ETIM 8.0 | EC001846 |
| UNSPSC 16.0901 | 41111960 |
