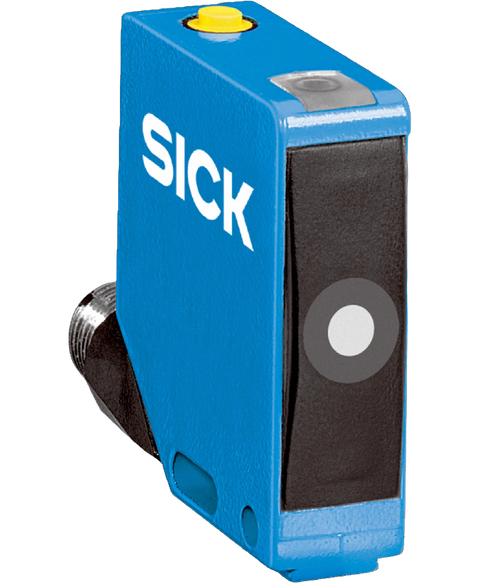

SICK UC12-11231
Ultrasonic sensor, distance sensor, 20-250mm range, 10-30VDC, 2 pnp outputs, 500mA, for natural objects, male m12 connector, 4 pin, 6029831
This SICK UC12-11231 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Ultrasonic sensors range and is referenced internally as PartLogic SKU PL26805623387.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Operating range, limiting range | 20 mm ... 150 mm, 250 mm |
| Target | Natural objects |
| Resolution | ≥ 0.1 mm |
| Repeatability | ± 0.15 % 1) |
| Measurement accuracy | ± 1 % 2) |
| Temperature compensation | ✔ |
| Response time | 30 ms |
| Switching frequency | 25 Hz |
| Output time | 8 ms |
| Ultrasonic frequency (typical) | 380 kHz |
| Detection area (typical) | See diagrams |
| Additional function | Set switching mode: Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB), teach-in of digital output, teach-in button(s) (can be deactivated), reset to factory default |
| MTTF D | 101 years |
| DC avg | 0% |
| Number | 2 1) |
| Type | PNP |
| Function | Complementary digital outputs (Q, Ǭ) |
| Maximum output current I A | ≤ 500 mA |
| Hysteresis | 2 mm |
| Supply voltage U B | DC 10 V ... 30 V 1) |
| Power consumption | ≤ 1.2 W 2) |
| Indication | Dual LED |
| Enclosure rating | IP65 / IP67 |
| Protection class | III |
| Dimensions (W x H x D) | 15 mm x 48.8 mm x 43.5 mm |
| Design | Rectangular |
| Sending axis | Straight |
| Housing material | Metal (zinc diecast, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Weight | 75 g |
| Connection type | Male connector, M12, 4-pin |
| Ambient temperature, operation | –25 °C ... +70 °C |
| Ambient temperature, storage | –40 °C ... +85 °C |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270804 |
| ECLASS 5.1.4 | 27270804 |
| ECLASS 6.0 | 27270804 |
| ECLASS 6.2 | 27270804 |
| ECLASS 7.0 | 27270804 |
| ECLASS 8.0 | 27270804 |
| ECLASS 8.1 | 27270804 |
| ECLASS 9.0 | 27270804 |
| ECLASS 10.0 | 27270804 |
| ECLASS 11.0 | 27270804 |
| ECLASS 12.0 | 27272806 |
| ETIM 5.0 | EC001846 |
| ETIM 6.0 | EC001846 |
| ETIM 7.0 | EC001846 |
| ETIM 8.0 | EC001846 |
| UNSPSC 16.0901 | 41111960 |
| Phase Status | Phased Out |
