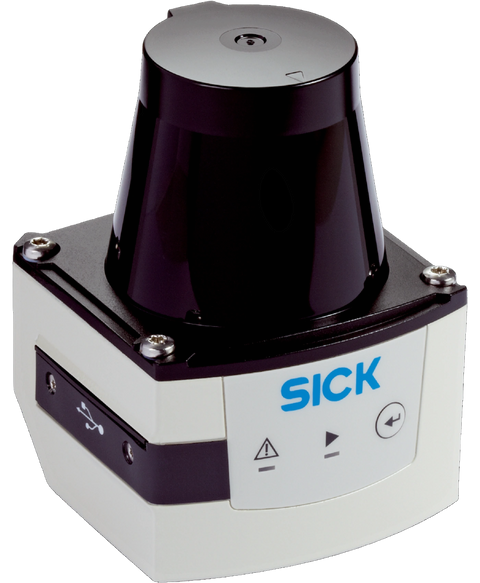

SICK TIM361-2134101
Laser scanner, 2d lidar sensor, 0.5-10 m working range, infrared (850 nm), 270 degree field of view, 15Hz scanning frequency, 1,3 degree resolution, 9-28VDC, 100mA, IP67, (1071399)
This SICK TIM361-2134101 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Laser scanners range and is referenced internally as PartLogic SKU PL26805677197.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Application | Outdoor, Indoor |
| Measurement principle | HDDM |
| Light source | Infrared (850 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Horizontal | 0.33° |
| Scanning frequency | 15 Hz |
| Working range | 0.05 m ... 10 m |
| At 10% remission factor | 8 m |
| Connection type | 1 x “Ethernet” connection, 4-pin M12 female connector 1 x connection “Power”, 12-pin, M12 male connector 1 x Micro USB female connector, type B |
| Supply voltage | 9 V DC ... 28 V DC |
| Power consumption | Typ. 4 W, 16 W with 4 max. loaded digital outputs |
| Output current | ≤ 100 mA |
| Housing color | Gray (RAL 7032) |
| Enclosure rating | IP67, applies only when the plastic cover of the “Aux interface” is closed (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Protection class | III (IEC 61140:2016-1) |
| Weight | 250 g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 86 mm |
| MTBF | > 100 years |
| MTTF D | 100 years |
| Response time | 1 scan, typ. 67 ms 2 scans, ≤ 134 ms |
| Detectable object shape | Almost any |
| Systematic error | ± 60 mm |
| Statistical error | < 20 mm |
| Integrated application | Field evaluation |
| Number of field sets | 16 field triples (48 fields, contour as reference; 1 triple (3 flexible fields) can be configured directly at the scanner) |
| Simultaneous evaluation cases | 1 (3 fields) 2 (2 fields for detection and 1 field for contour as reference) |
| Ethernet | ✔ , TCP/IP |
| Function | Service interface, parameterization |
| USB | ✔ |
| Remark | Micro USB |
| Inputs | 4 |
| Outputs | 3 (PNP, additional 1 x “Device Ready”) |
| Delay time | 67 ms ... 30,000 ms (configurable) |
| Dwell time | 67 ms ... 600,052 ms (configurable) |
| Optical indicators | 2 LEDs (ON, switching status) |
| Object remission | 4 % ... 1,000 % (reflectors) |
| Emitted radiation | Residential area (EN 61000-6-3:2007+AMD:A1:2011) |
| Electromagnetic immunity | Industrial environment (EN 61000-6-2:2005) |
| Sine resonance scan | 10 Hz ... 1,000 Hz |
| Sine test | 10 Hz ... 500 Hz, 5 g, 10 frequency cycles |
| Noise test | 10 Hz ... 250 Hz, 4.24 g RMS, 5 h |
| Shock resistance | 50 g, 11 ms, ± 3 single shocks/axis 25 g, 6 ms, ± 1,000 continuous shocks/axis 50 g, 3 ms, ± 5,000 continuous shocks/axis |
| Ambient operating temperature | –25 °C ... +50 °C |
| Storage temperature | –40 °C ... +75 °C |
| Switch-on temperature | –10 °C ... +50 °C |
| Temperature change | –25 °C ... +50 °C, 10 cycles |
| Damp heat | +25 °C ... +55 °C, 95 % RH, 6 cycles |
| Operation | < 80 %, Non-condensing (EN 60068-2-30:2005) |
| Storage | ≤ 90 %, Non-condensing (EN 60068-2-30:2005) |
| Ambient light immunity | 80,000 lx |
| Note on use | The sensor does not constitute a safety component as defined by relevant legislation on machine safety. |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cTUVus certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27270990 |
| ECLASS 5.1.4 | 27270990 |
| ECLASS 6.0 | 27270913 |
| ECLASS 6.2 | 27270913 |
| ECLASS 7.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 8.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 10.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 41111615 |
