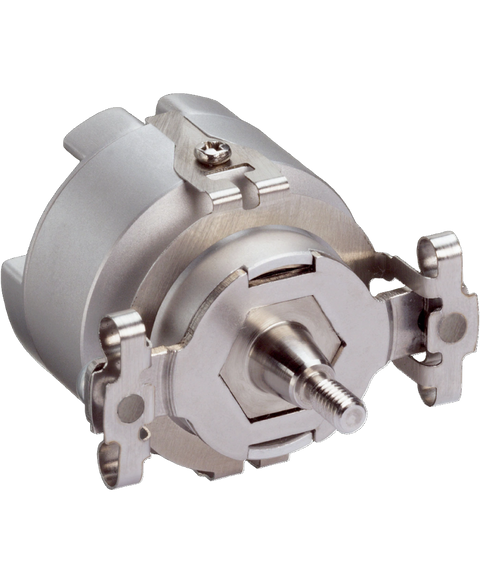

SICK SKS36-HFA0-K02
Motor feedback encoder, 7-12VDC (8VDC nominal), 60mA, 65kHz output, 128 sine,cosine periods per rev, hipeface interface, tapered shaft, 4096 steps, 8 pin radial male connector, -20 to 110 degree c, IP50, (1034095)
This SICK SKS36-HFA0-K02 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Encoders > Absolute encoders range and is referenced internally as PartLogic SKU PL26805676488.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Items supplied | M3 mounting screws for stator coupling not included with delivery. |
| MTTF D (mean time to dangerous failure) | 210 years (EN ISO 13849) |
| Sine/cosine periods per revolution | 128 |
| Number of the absolute ascertainable revolutions | 1 |
| Total number of steps | 4,096 |
| Measuring step | 2.5 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits |
| Integral non-linearity | ± 80 ″, Error limits for evaluating sine/cosine period |
| Differential non-linearity | ± 40 ″, Non-linearity within a sine/cosine period |
| Operating speed | ≤ 12,000 min⁻¹, up to which the absolute position can be reliably produced |
| Available memory area | 1,792 Byte |
| System accuracy | ± 120 ″ |
| Type of code for the absolute value | Binary |
| Code sequence | Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing), For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) |
| Communication interface | HIPERFACE |
| Connection type | Male connector, 8-pin, radial |
| Supply voltage | 7 V DC ... 12 V DC |
| Recommended supply voltage | 8 V DC |
| Current consumption | 60 mA |
| Output frequency for sine/cosine signals | ≤ 65 kHz |
| Shaft version | Tapered shaft |
| Flange type / stator coupling | Spring mounting plate, stator coupling |
| Dimensions | See dimensional drawing |
| Weight | ≤ 0.07 kg |
| Moment of inertia of the rotor | 4.5 gcm² |
| Angular acceleration | ≤ 500,000 rad/s² |
| Operating torque | 0.2 Ncm |
| Start up torque | + 0.3 Ncm |
| Permissible movement static | ± 0.1 mm, - 0.4 mm, + 0.2 mm radial, axial, axial |
| Permissible movement dynamic | ± 0.05 mm radial ± 0.1 mm axial |
| Life of ball bearings | 3.6 x 10 revolutions |
| Operating temperature range | –20 °C ... +110 °C |
| Storage temperature range | –40 °C ... +125 °C, without package |
| Relative humidity/condensation | 90 %, Condensation not permitted |
| Resistance to shocks | 100 g, 6 ms, 6 ms (according to EN 60068-2-27) |
| Frequency range of resistance to vibrations | 50 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
| EMC | According to EN 61000-6-2 and EN 61000-6-3 |
| Enclosure rating | IP50, with mating plug inserted and closed cover (IEC 60529) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27270590 |
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27273805 |
| ECLASS 11.0 | 27273901 |
| ECLASS 12.0 | 27273901 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
