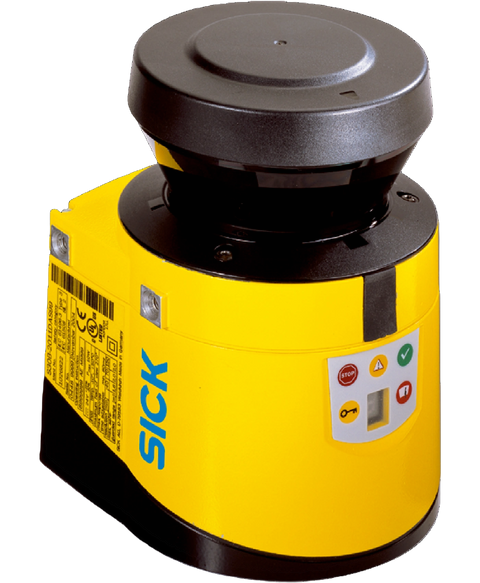

SICK S30B-3011GB
(1057641), safety laser scanner, system plug not included, s300 expert, 3.0 meter protected field range, 8 meter warning field range, 270 degrees scanning angle, 80 ms response time, 30-70mm resolution, 24VDC
This SICK S30B-3011GB is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety laser scanners range and is referenced internally as PartLogic SKU PL26805610840.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product version | S300 Expert |
| Model | Sensor without system plug |
| Application | Indoor |
| Protective field range | 3 m |
| Warning field range | 8 m (at 15 % reflectivity) |
| Distance measuring range | 30 m |
| Type of field set | Triple field sets |
| Number of field sets | 16 |
| Number of fields | 48 |
| Number of monitoring cases | 32 |
| Scanning angle | 270° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm, 150 mm |
| Angular resolution | 0.5° |
| Response time | 80 ms |
| Protective field supplement | 100 mm |
| Number of multiple samplings | 2 ... 16, configurable |
| Delay of automatic reset | 2 s ... 60 s, configurable |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| PFH D (mean probability of a dangerous failure per hour) | 8.0 x 10 |
| T M (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
| Restart interlock | ✔ |
| External device monitoring (EDM) | ✔ |
| Multiple sampling | ✔ |
| Monitoring case switching | ✔ |
| Static protective field switching | ✔ |
| Dynamic protective field switching | ✔ |
| Contour as a reference | ✔ |
| Integrated configuration memory | ✔ |
| Safe SICK device communication via EFI | ✔ |
| Connection type | System plug with or without connecting cable |
| Universal I/Os | 5 |
| Reset/restart | 1 |
| Static control inputs | 3 |
| Static control inputs with EFI | 5 |
| Dynamic control inputs (incremental encoder) | 2 |
| Standby | 1 |
| OSSD pairs | 1 |
| Application diagnostic outputs | 3 x 100 mA |
| Configuration method | PC with CDS (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | RS-232 |
| Transmission rate | ≤ 500 kBaud |
| Data interface | RS-422 |
| Length of cable | ≤ 50 m |
| Conductor cross section | 0.22 mm² |
| Protection class | III (EN 50178, EN 60950) |
| Supply voltage V s | 24 V DC (16.8 V DC ... 30 V DC) |
| Power consumption | 0.33 A 1.7 A |
| Output signal switching devices (OSSDs) | 2 x 250 mA |
| Dimensions (W x H x D) | 102 mm x 152 mm x 106 mm |
| Weight | 1.2 kg |
| Housing material | Aluminum die cast |
| Housing color | RAL 1021 (yellow) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
| Enclosure rating | IP65 (EN 60529) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Storage temperature | –25 °C ... +50 °C |
| Vibration resistance | IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3 |
| Class | 5M1 (IEC 60721-3-5) |
| Shock resistance | IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3 |
| Continuous shock | 50 m/s², 11 ms |
| Type of light | Pulsed laser diode |
| Wave length | 905 nm |
| Detectable remission factor | 1.8 % ... > 1,000 %, reflectors |
| Laser class | 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| China GB certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27272705 |
| ECLASS 5.1.4 | 27272705 |
| ECLASS 6.0 | 27272705 |
| ECLASS 6.2 | 27272705 |
| ECLASS 7.0 | 27272705 |
| ECLASS 8.0 | 27272705 |
| ECLASS 8.1 | 27272705 |
| ECLASS 9.0 | 27272705 |
| ECLASS 10.0 | 27272705 |
| ECLASS 11.0 | 27272705 |
| ECLASS 12.0 | 27272705 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 39121528 |
