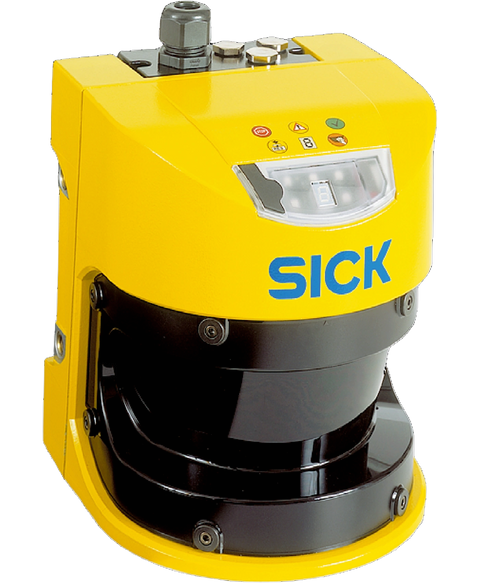

SICK S30A-6011BA
Discontinued by manufacturer, safety laser scanner, s3000 standard, 5.5 meter protected field range, 49 meter warning field range, 4 simultaneously monitored field, 190 degrees scanning angle, 60 ms response time, 30-150mm resolution, 24VDC, (1023546)
This SICK S30A-6011BA is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety laser scanners range and is referenced internally as PartLogic SKU PL26801447145.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | Sensor without system plug |
| Application | Indoor |
| Protective field range | 5.5 m |
| Warning field range | 49 m (20 m at 20 % reflectivity) |
| Distance measuring range | 49 m |
| Number of simultaneously monitored protective fields | ≤ 4 1) |
| Type of field set | Triple field sets, dual field sets |
| Number of field sets | 1 |
| Number of fields | 4 2) |
| Number of monitoring cases | 1 |
| Scanning angle | 190° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm, 150 mm |
| Angular resolution | 0.5°, 0.25°, depending on range and resolution |
| Response time | 60 ms 3) |
| Protective field supplement | 100 mm |
| Number of multiple samplings | 2 ... 16, configurable |
| Delay of automatic reset | 2 s ... 60 s, configurable |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| PFH D (mean probability of a dangerous failure per hour) | 8.0 x 10 -8 |
| T M (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
| Restart interlock | ✔ |
| External device monitoring (EDM) | ✔ |
| Multiple sampling | ✔ |
| Simultaneous monitoring | ✔ |
| Contour as a reference | ✔ |
| Integrated configuration memory | ✔ |
| Measured data output | Via RS-422 |
| Safe SICK device communication via EFI | ✔ |
| Protection class | II (EN 50178) |
| Supply voltage V s | 24 V DC (16.8 V DC ... 28.8 V DC) |
| Power consumption | 0.8 A 1) 2.3 A 2) |
| Output signal switching devices (OSSDs) | 2 x 500 mA |
| Application diagnostic outputs | 3 x 100 mA 3) |
| Dimensions (W x H x D) | 155 mm x 185 mm x 160 mm |
| Weight | 3.3 kg |
| Housing material | Aluminum die cast |
| Housing color | RAL 1021 (yellow) |
| Front screen material | Polycarbonate |
| Front screen surface finish | Outside with scratch-resistant coating |
| Enclosure rating | IP65 (EN 60529) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Storage temperature | –25 °C ... +50 °C |
| Vibration resistance | IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3 |
| Class | 5M1 (IEC 60721-3-5) |
| Shock resistance | IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3 |
| Continuous shock | 50 m/s², 11 ms |
| Type of light | Pulsed laser diode |
| Wave length | 905 nm |
| Detectable remission factor | 1.8 % ... > 1,000 %, reflectors |
| Laser class | 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| China GB certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27272705 |
| ECLASS 5.1.4 | 27272705 |
| ECLASS 6.0 | 27272705 |
| ECLASS 6.2 | 27272705 |
| ECLASS 7.0 | 27272705 |
| ECLASS 8.0 | 27272705 |
| ECLASS 8.1 | 27272705 |
| ECLASS 9.0 | 27272705 |
| ECLASS 10.0 | 27272705 |
| ECLASS 11.0 | 27272705 |
| ECLASS 12.0 | 27272705 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | In Phase Out |
