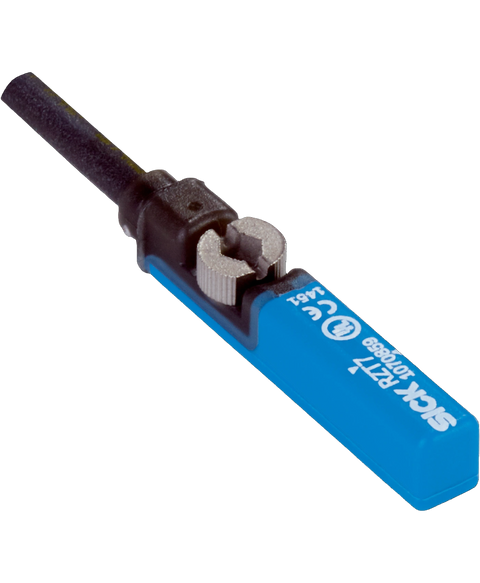

SICK RZT7-03ZRS-KP0
Cylinder position sensor, t-slot, reed output, 400Hz switching freq., normally open, 3-wire AC,DC, IP65,IP67, 5-30VAC,dc, led indicator, 3-pin m8 connector, 0.3 m cable, drag chain use, (1070847)
This SICK RZT7-03ZRS-KP0 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Magnetic cylinder range and is referenced internally as PartLogic SKU PL26805608011.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Cylinder type | T-slot |
| Cylinder types with adapter | Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 |
| Housing length | 29.5 mm |
| Switching output | Reed |
| Switching frequency | 400 Hz |
| Output function | NO |
| Electrical wiring | AC/DC 3-wire |
| Enclosure rating | IP65 IP67 |
| Supply voltage | 5 V AC/DC ... 30 V AC/DC |
| Voltage drop | ≤ 0.1 V |
| Continuous current I a | ≤ 500 mA ≤ 300 mA |
| Switching capacity | ≤ 6 W |
| Protection class | III |
| Response sensitivity, typ. | 3 mT |
| Overrun distance, typ. | 10 mm |
| Reproducibility | ≤ 0.1 mT |
| Reverse polarity protection | Yes |
| Status indicator LED | Yes |
| Teach-in | No |
| Ambient operating temperature | –30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable with connector M8, 3-pin, drag chain use, 0.3 m |
| Conductor cross section | 0.14 mm² |
| Cable diameter | Ø 2.9 mm |
| Bending radius | With fixed installation > 8 x cable diameter |
| Cable outlet | Axial |
| Housing | Plastic, Grilamid LVX-65H SST |
| Cable | PUR |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| MTTF D | 41,230 years |
| DC avg | 0 % |
| T M (mission time) | 20 years |
| B 10D | 10,000,000 Switching cycles |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270104 |
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
