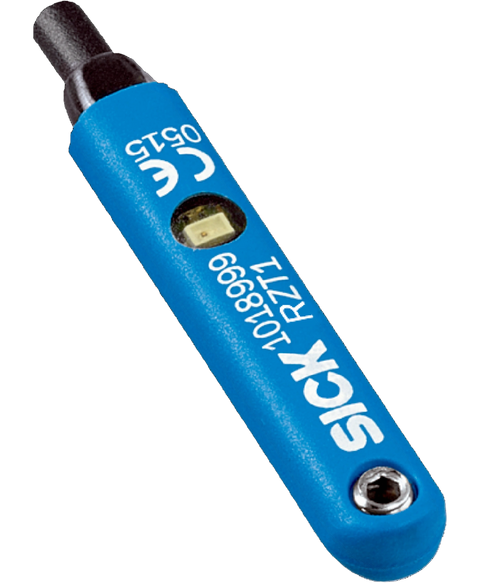

SICK RZT1-03ZRS-KP0
Discontinued by manufacturer, magnetic cylinder sensor, for t-slot cylinder, reed switching output, 400Hz, NO, AC,DC 3-wire, IP67 enclosure, (1016912), replaced by part # rzt7-03zrs-kp0, (1070847)
This SICK RZT1-03ZRS-KP0 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Magnetic cylinder range and is referenced internally as PartLogic SKU PL26805620743.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Cylinder type | T-slot |
| Cylinder types with adapter | Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 |
| Housing length | 30.5 mm |
| Switching output | Reed |
| Switching output detail | Reed |
| Switching frequency | 400 Hz |
| Output function | NO |
| Electrical wiring | AC/DC 3-wire |
| Enclosure rating | IP67 1) |
| Supply voltage | 10 V AC/DC ... 30 V AC/DC |
| Voltage drop | ≤ 0.1 V |
| Continuous current I a | ≤ 500 mA |
| Switching capacity | ≤ 6 W |
| Protection class | III |
| Response sensitivity, typ. | 3 mT |
| Overrun distance, typ. | 9 mm |
| Hysteresis, typ. | ≤ 1.5 mm |
| Reproducibility | ≤ 0.2 mm 1) |
| Status indicator LED | Yes |
| Ambient operating temperature | –25 °C ... +75 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable with connector M8, 3-pin, 0.3 m |
| Housing | Plastic |
| Cable | PUR |
| UL File No. | NRKH.E181493 |
| ECLASS 5.0 | 27270104 |
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
| Phase Status | Phased Out |
