SICK RLY3-OSSD300

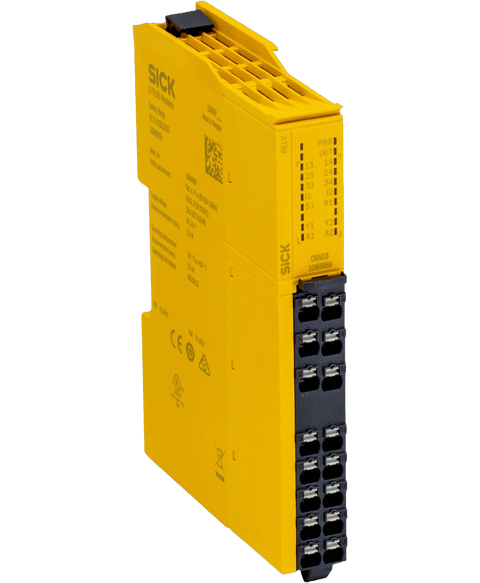

Safety relay, relay , evaluation unit, 2 safety inputs, 1 electronic device monitoring input, 3 enabling current paths , normally open, 2 diagnostic outputs, 1 test pulse output pnp, sequence monitoring, 16.8-30VDC, 1099969
This SICK RLY3-OSSD300 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805603435.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Applications | Evaluation unit |
| Compatible sensor types | Safety sensors with OSSDs |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (ISO 13849-1) |
| Performance level | PL e (ISO 13849-1) |
| PFH D (mean probability of a dangerous failure per hour) | 1.0 x 10 |
| T M (mission time) | 20 years (ISO 13849-1) |
| Stop category | 0 (IEC 60204-1) |
| Sensor monitoring | Sequence monitoring |
| Restart interlock | ✔ |
| Reset | Automatic Manual |
| External device monitoring (EDM) | ✔ |
| Connection type | Front connector with spring terminals |
| Inputs | 2 safety inputs 1 input for reset pushbutton or external device monitoring (EDM) |
| Outputs | 3 enabling current paths (safe) 2 application diagnostic outputs (not safe) 1 test pulse output (not safe) |
| Display elements | LEDs |
| Configuration method | Hard wired |
| Voltage supply | PELV or SELV |
| Supply voltage V S | 24 V DC (16.8 V ... 30 V) |
| Residual ripple | ≤ 2.4 V |
| Power consumption | ≤ 2.5 W (DC) |
| Number | 2 |
| Input voltage HIGH | 24 V DC (11 V ... 30 V) |
| Input voltage LOW | 0 V DC (–3 V ... 5 V) |
| Input current | 4 mA ... 6 mA |
| Test pulse width | ≤ 1 ms |
| Test pulse rate | ≤ 10 Hz |
| Response time (opening of enabling current paths) | 12 ms |
| Type of output | Push-pull semiconductor output, short-circuit protected |
| Contact material | Silver alloy, gold flashed |
| Switching voltage | 10 V AC ... 230 V AC |
| Switching current | 10 mA ... 6 A |
| Total current | 12 A |
| Mechanical life | 1 x 10 switching cycles |
| Overvoltage category | III (EN 60664-1) |
| Rated impulse withstand voltage U imp | 6 kV (EN 60664-1) |
| Output voltage HIGH | ≥ V s – 3 V |
| Output voltage LOW | ≤ 3 V |
| Input current (NPN) | ≤ 15 mA |
| Output current (PNP) | ≤ 120 mA |
| Output voltage | ≥ V s – 3 V |
| Test pulse interval | 40 ms |
| Dimensions (W x H x D) | 18 mm x 124.6 mm x 85.5 mm |
| Weight | 150 g |
| Enclosure rating | IP20 (IEC 60529) |
| Ambient operating temperature | –25 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | ≤ 95 %, Non-condensing |
| Interference emission | According to IEC 61000-6-4 |
| Interference resistance | According to IEC 61326-3-1 According to IEC 61000-6-2 According to IEC 60947-5-1 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| EAC certificate / DoC | ✔ |
| cTUVus certificate | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| EC-Type-Examination approval (Machinery Directive) | ✔ |
| EC-Type-Examination approval (Machinery Regulation) | ✔ |
| Third party certificate | ✔ |
| ECLASS 5.0 | 27371990 |
| ECLASS 5.1.4 | 27371990 |
| ECLASS 6.0 | 27371819 |
| ECLASS 6.2 | 27371819 |
| ECLASS 7.0 | 27371819 |
| ECLASS 8.0 | 27371819 |
| ECLASS 8.1 | 27371819 |
| ECLASS 9.0 | 27371819 |
| ECLASS 10.0 | 27371819 |
| ECLASS 11.0 | 27371819 |
| ECLASS 12.0 | 27371819 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 41113704 |
