SICK RLY3-OSSD100

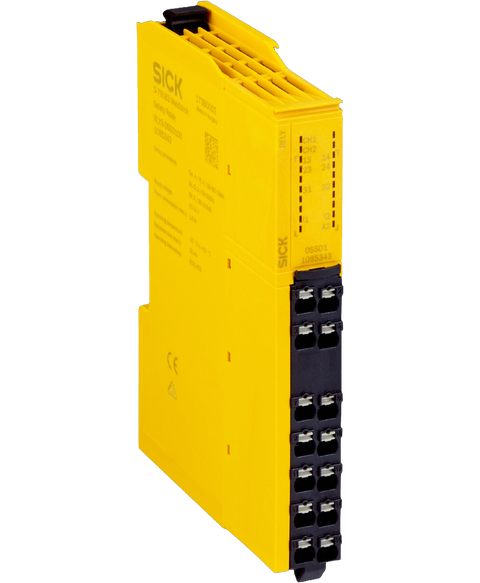

(1085343), safety relay, 24VDC, 50mA, 2 safety inputs, 2 enabling current path outputs, 1 feedback current output, 12 ms response time, -25 to 55 degree c, IP20, (1085343)
This SICK RLY3-OSSD100 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805596407.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Applications | Output expansion module for OSSDs |
| Compatible sensor types | Safety sensors with OSSDs |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (ISO 13849-1) |
| Performance level | PL e (ISO 13849-1) |
| PFH D (mean probability of a dangerous failure per hour) | 1.0 x 10 |
| T M (mission time) | 20 years (ISO 13849-1) |
| Stop category | 0 (IEC 60204-1) |
| Path for external device monitoring (EDM) | ✔ |
| Connection type | Front connector with spring terminals |
| Inputs | 2 safety inputs |
| Outputs | 2 enabling current paths (safe) 1 feedback current path (for use as external device monitoring, not safe) |
| Display elements | LEDs |
| Voltage supply | Passive (no active voltage supply) |
| Power consumption (input circuits) | ≤ 1.5 W (DC) |
| Number | 2 |
| Input voltage HIGH | 24 V DC (15 V ... 30 V) |
| Input voltage LOW | 0 V DC (–3 V ... 5 V) |
| Input current | ≤ 50 mA |
| Test pulse width | ≤ 1 ms |
| Test pulse rate | ≤ 10 Hz |
| Response time (opening of enabling current paths) | 12 ms |
| Type of output | N/O contacts, positively guided |
| Contact material | Silver alloy, gold flashed |
| Switching voltage | 10 V AC ... 230 V AC |
| Switching current | 3 mA ... 100 mA |
| Total current | 12 A |
| Mechanical life | 1 x 10 switching cycles |
| Overvoltage category | III (EN 60664-1) |
| Rated impulse withstand voltage U imp | 6 kV (EN 60664-1) |
| Dimensions (W x H x D) | 18 mm x 124.6 mm x 85.5 mm |
| Weight | 130 g |
| Enclosure rating | IP20 (IEC 60529) |
| Ambient operating temperature | –25 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | ≤ 95 %, Non-condensing |
| Interference emission | According to IEC 61000-6-4 |
| Interference resistance | According to IEC 61326-3-1 According to IEC 61000-6-2 According to IEC 60947-5-1 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| EAC certificate / DoC | ✔ |
| cTUVus certificate | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| EC-Type-Examination approval (Machinery Directive) | ✔ |
| EC-Type-Examination approval (Machinery Regulation) | ✔ |
| Third party certificate | ✔ |
| ECLASS 5.0 | 27371990 |
| ECLASS 5.1.4 | 27371990 |
| ECLASS 6.0 | 27371819 |
| ECLASS 6.2 | 27371819 |
| ECLASS 7.0 | 27371819 |
| ECLASS 8.0 | 27371819 |
| ECLASS 8.1 | 27371819 |
| ECLASS 9.0 | 27371819 |
| ECLASS 10.0 | 27371819 |
| ECLASS 11.0 | 27371819 |
| ECLASS 12.0 | 27371819 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 41113704 |
