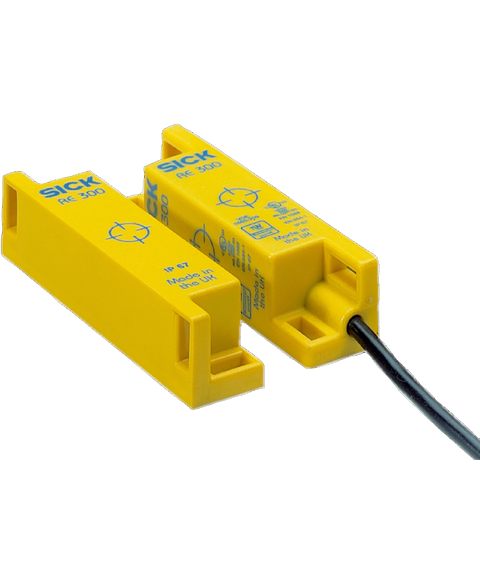

SICK RE300-DA03P
Discontinued by manufacturer, safety switch, re300 series, non-contact, magnetic, 1-NO,1-NC contacts, with integral 3m cable, with actuator, (6025080)
This SICK RE300-DA03P is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches range and is referenced internally as PartLogic SKU PL26805596948.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| System part | Sensor with actuator |
| Sensor principle | Magnetic |
| N/O contacts | 1 |
| N/C contacts | 1 |
| Assured switch on distance S ao | 5 mm |
| Assured switch off distance S ar | 15 mm |
| Active sensor surfaces | 2 |
| Actuation directions | 5 |
| B 10d parameter | 2 x 10 7 switching cycles (with small load) |
| Type | Type 4 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. |
| Safe series connection | None, only individual wiring (with diagnostics) |
| Connection type | Cable |
| Length of cable | 3 m |
| Cable material | PVC |
| Type of output | Reed contacts |
| Switching voltage | ≤ 30 V DC |
| Switching current | ≤ 30 mA |
| Design | Rectangular |
| Dimensions (W x H x D) | 19 mm x 82 mm x 19 mm |
| Weight | + 0.168 kg |
| Housing material | ABS shape |
| Enclosure rating | IP67 |
| Ambient operating temperature | –10 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Vibration resistance | 10 Hz ... 55 Hz, 0.35 mm (IEC 60068-2-6) |
| Shock resistance | 30 g (IEC 60068-2-29) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| TÜV approval | ✔ |
| TÜV approval annex | ✔ |
| ECLASS 5.0 | 27272402 |
| ECLASS 5.1.4 | 27272402 |
| ECLASS 6.0 | 27272402 |
| ECLASS 6.2 | 27272402 |
| ECLASS 7.0 | 27272402 |
| ECLASS 8.0 | 27272402 |
| ECLASS 8.1 | 27272402 |
| ECLASS 9.0 | 27272402 |
| ECLASS 10.0 | 27272402 |
| ECLASS 11.0 | 27272402 |
| ECLASS 12.0 | 27274401 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122205 |
| Phase Status | Phased Out |
