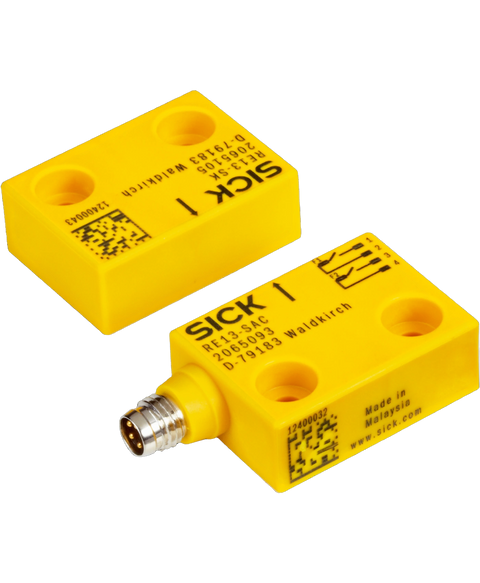

SICK RE13-SAC
Safety sensor,actuator, magnetic, 7-20mm switch on distance, 30VDC switching voltage, 100mA switching current, 2 normally open contacts, m8 4 pin plug connector, -30 to 60 degree c, IP67, (1509503)
This SICK RE13-SAC is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches range and is referenced internally as PartLogic SKU PL26805606359.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| System part | Sensor with actuator |
| Sensor principle | Magnetic |
| N/O contacts | 2 |
| N/C contacts | 0 |
| Signaling contacts | 0 |
| Assured switch on distance S ao | 7 mm |
| Assured switch off distance S ar | 20 mm |
| Active sensor surfaces | 1 |
| Actuation directions | 5 |
| B 10d parameter | 2 x 10 switching cycles (with small load) |
| Type | Type 4 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. |
| Safe series connection | None, only individual wiring (with diagnostics) |
| Connection type | Plug connector, M8, 4-pin |
| Coupling nut material | Nickel-plated brass |
| Type of output | Reed contacts |
| Switching voltage | ≤ 30 V DC |
| Switching current | ≤ 100 mA |
| Design | Rectangular |
| Dimensions (W x H x D) | 26 mm x 36 mm x 13 mm |
| Weight | 0.1 kg |
| Housing material | VISTAL® |
| Enclosure rating | IP67 (IEC 60529) |
| Ambient operating temperature | –30 °C ... +60 °C |
| Storage temperature | –30 °C ... +60 °C |
| Vibration resistance | 10 Hz ... 55 Hz, 1 mm (EN 60947-5-3) |
| Shock resistance | 30 g, 11 ms (EN 60947-5-3) |
| ECLASS 5.0 | 27272402 |
| ECLASS 5.1.4 | 27272402 |
| ECLASS 6.0 | 27272402 |
| ECLASS 6.2 | 27272402 |
| ECLASS 7.0 | 27272402 |
| ECLASS 8.0 | 27272402 |
| ECLASS 8.1 | 27272402 |
| ECLASS 9.0 | 27272402 |
| ECLASS 10.0 | 27272402 |
| ECLASS 11.0 | 27272402 |
| ECLASS 12.0 | 27274401 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122205 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| TÜV approval | ✔ |
| TÜV approval annex | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
