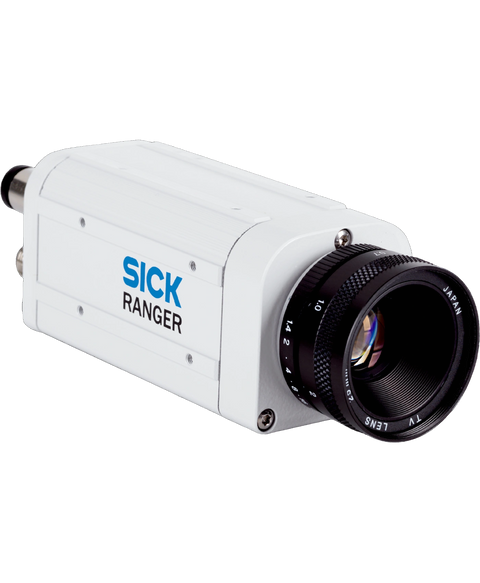

SICK RANGER-E50414
3d vision camera, ranger e50, up to 35k 3d profiles , second, gigabit ethernet, 1,536 x 512 px sensor resolution, RS-422, 12-24VDC supply, (1040379)
This SICK RANGER-E50414 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Vision sensors range and is referenced internally as PartLogic SKU PL26805619375.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Task | Quality inspection, high-speed Measuring, 3D |
| Technology | 3D line scanning, MultiScan |
| Product category | Streaming, flexible |
| Example field of view | Free of choice by lens selection |
| Illumination | To be ordered separately as accessories |
| Data synchronization | Free running, encoder triggered, external triggering |
| Grayscale measurements | ✔ |
| Scatter measurement | ✔ |
| Spectral range | 400 nm ... 950 nm |
| Description | Ranger E50 - 3D and MultiScan, up to 35 k profiles/second. Gigabit Ethernet interface, 1,536 x 512 pixels. |
| Lens | C-mount |
| Optical format | 1″ |
| Connection type | Power I/O: M12, 8-pin male M12, 8-pin female connector (encoder) RJ45 (Ethernet) |
| Connector material | M12: nickel-plated brass |
| Supply voltage | 12 V DC ... 24 V DC |
| Ripple | pp |
| Power consumption | 7 W |
| Current consumption | 0.8 A |
| Standards (ROHS) | ✔ |
| Enclosure rating | IP20 |
| Housing material | Aluminum |
| Housing color | Gray, varnished |
| Weight | 360 g |
| Dimensions (L x W x H) | 125 mm x 52 mm x 52 mm |
| Bit depth | 8 bit |
| Image sensor | CMOS |
| Sensor resolution | 1,536 px x 512 px |
| Scan/frame rate | 35,000 3D profiles/s |
| Sensor rows available for 3D | 0 ... 511 |
| 3D profile resolution | 1,536 px |
| Scatter resolution | 1,536 px |
| Pixel size | 9.5 µm x 9.5 µm |
| Pixel matrix fill factor | 60 % |
| Maximum 3D height resolution | 13 bits 1/16 pixels |
| Optical center (row, column) | (227, 768) |
| Gray-scale resolution | 1,536 px |
| IR filter | No IR pass filter |
| Ethernet | ✔ , UDP/IP |
| Data transmission rate | 1,000 Mbit/s | Maximum encoder frequency: 2 MHz |
| Serial | ✔ , RS-422 |
| Function | Encoder |
| Configuration software | Ranger Studio |
| Operating system | Windows XP Pro, Windows 7, Windows 10 |
| Development environment | C++ (VS 2005/2008/2010) / C |
| Programming interface | iCon API |
| Digital input | 4 x HIGH = 10 V ... 28.8 V |
| Digital output | 1 x TTL level, 2 x B-type, |
| Encoder interface | RS-422 |
| Maximum encoder frequency | 2 MHz |
| External illumination | 5 V TTL |
| Shock load | 15 g, 3 x 6 directions |
| Vibration load | 5 g, 58 Hz ... 150 Hz |
| Ambient operating temperature | 0 °C ... +45 °C 1) |
| Storage temperature | –20 °C ... +70 °C 1) |
| EU declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECLASS 5.0 | 27310205 |
| ECLASS 5.1.4 | 27310205 |
| ECLASS 6.0 | 27310205 |
| ECLASS 6.2 | 27310205 |
| ECLASS 7.0 | 27310205 |
| ECLASS 8.0 | 27310205 |
| ECLASS 8.1 | 27310205 |
| ECLASS 9.0 | 27310205 |
| ECLASS 10.0 | 27310205 |
| ECLASS 11.0 | 27310205 |
| ECLASS 12.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
| Phase Status | Phased Out |
