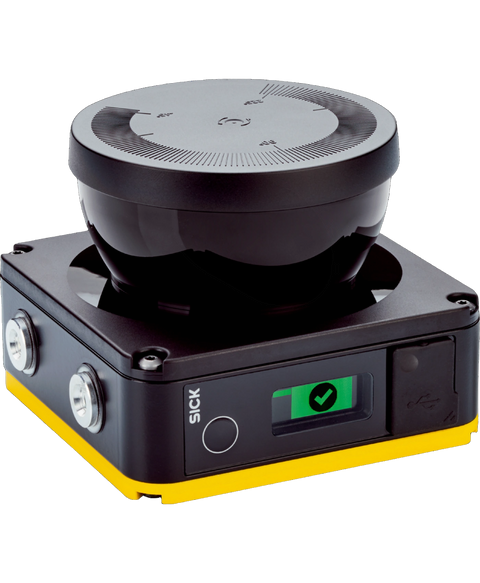

SICK NANS3-CAAZ30AN1
Proximity laser scanner, protective field range 3 m, warning field range 10 m, supply voltage vs 24 V DC (16.8 V DC... 30 V DC), power consumption 3.9W (without output load)
This SICK NANS3-CAAZ30AN1 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches range and is referenced internally as PartLogic SKU PL26805617093.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product version | nanoScan3 Pro I/O |
| Model | Sensor without system plug |
| Application | Indoor |
| Protective field range | 3 m |
| Warning field range | 10 m |
| Distance measuring range | 40 m |
| Number of simultaneously monitored fields | ≤ 8 |
| Number of fields | 128 |
| Number of monitoring cases | 128 |
| Scanning angle | 275° |
| Resolution (can be configured) | 20 mm 30 mm 40 mm 50 mm 60 mm 70 mm 150 mm 200 mm |
| Angular resolution | 0.17° |
| Response time | 70 ms |
| Protective field supplement | 65 mm |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| PFH D (mean probability of a dangerous failure per hour) | 8.0 x 10 |
| T M (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
| Restart interlock | ✔ |
| External device monitoring (EDM) | ✔ |
| Multiple sampling | ✔ |
| Monitoring case switching | ✔ |
| Simultaneous monitoring | ✔ |
| Static protective field switching | ✔ |
| Dynamic protective field switching | ✔ |
| Safe contour detection | ✔ |
| Contour as a reference | ✔ |
| Integrated configuration memory | ✔ |
| Measured data output | Via Ethernet |
| Connection type | Depending on system plug |
| Universal I/Os | 4 |
| OSSD pairs | 2 |
| Universal inputs | 8 |
| Dynamic switching signals | 4 |
| Static control inputs | 6 |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, micro USB |
| Services | CoLa 2 (configuration and diagnostics using Safety Designer) |
| Display elements | Graphic color display, LEDs |
| Protection class | III (EN 61140) |
| Supply voltage V s | 24 V DC (16.8 V DC ... 30 V DC) |
| Power consumption typical | 3.9 W (without output load) |
| Dimensions (W x H x D) | 106.6 mm x 80 mm x 117.5 mm (including system plug) |
| Weight | 0.67 kg |
| Housing material | Aluminum |
| Housing color | RAL 1021 (yellow), RAL 9005 (black) |
| Optics cover material | Polycarbonate |
| Enclosure rating | IP65 (IEC 60529) |
| Ambient light immunity | ≤ 40 klx (IEC 61496-3) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Storage temperature | –25 °C ... +70 °C |
| Vibration resistance | IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3 |
| Class | 5M1 (IEC 60721-3-5) |
| Shock resistance | IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3 |
| Continuous shock | 50 m/s², 11 ms |
| EMC | IEC 61496-1, IEC 61000-6-2, IEC 61000-6-3 |
| Type of light | Pulsed laser diode |
| Wave length | 905 nm |
| Detectable remission factor | 1.8% to several 1000% |
| Laser class | 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| China GB certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27272705 |
| ECLASS 5.1.4 | 27272705 |
| ECLASS 6.0 | 27272705 |
| ECLASS 6.2 | 27272705 |
| ECLASS 7.0 | 27272705 |
| ECLASS 8.0 | 27272705 |
| ECLASS 8.1 | 27272705 |
| ECLASS 9.0 | 27272705 |
| ECLASS 10.0 | 27272705 |
| ECLASS 11.0 | 27272705 |
| ECLASS 12.0 | 27272705 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 39121528 |
