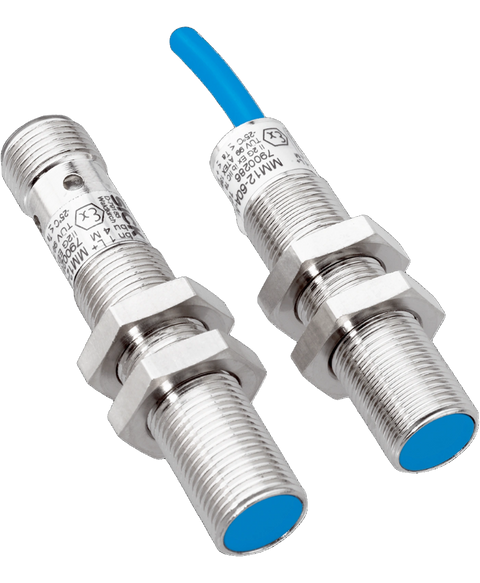

SICK MM12-60A-N-ZC0
Discontinued by manufacturer, (7900287) 60mm range, namur, m12,mm12-60A-n-zc0 induc prox, mm12-60A-n-zc0 magn.p
This SICK MM12-60A-N-ZC0 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Magnetic range and is referenced internally as PartLogic SKU PL26805675381.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing | Cylindrical thread design |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range S n | 5 mm ... 60 mm 1) |
| Safe sensing range S a | 48.6 mm |
| Magnetic sensitivity | ≤ 1 mT |
| Switching frequency | 5,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | NAMUR |
| Output characteristic | Control current depending on switching state according to NAMUR EN 60947-5-6 |
| Electrical wiring | DC 2-wire |
| Magnetic alignment | Axial |
| Enclosure rating | IP67 2) |
| Ripple | ≤ 5 % 1) |
| Time delay before availability | ≤ 2 ms |
| Hysteresis | 1 % ... 10 % |
| Reproducibility | ≤ 1 % 2) |
| Temperature drift (of S r ) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Current consumption, sensor is activated | ≥ 2.5 mA |
| Current consumption, sensor is not activated | ≤ 1 mA |
| Cable resistance | ≤ 50 Ω |
| Wire-break protection | ✔ |
| Short-circuit protection | ✔ |
| Reverse polarity protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +70 °C |
| Housing material | Metal, Nickel-plated brass |
| Housing length | 62.5 mm |
| Thread length | 40 mm |
| Tightening torque, max. | ≤ 7 Nm |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Type approval certificate | TÜV 99 ATEX 1398 |
| ATEX marking | EX II 2G Ex ib IIC T6 Gb Ta: - 25 °C ... + 70 °C |
| Ex area category | 2G |
| Input voltage U i max. | 16 V 3) |
| Input power P i max. | 100 mW 3) |
| Input current I i max. | 30 mA 3) |
| Internal capacitance C i max. | 15 nF 3) |
| Internal inductance L i max. | 35 µH 3) |
| Nominal voltage | 8.2 V DC |
| MTTF D | 4,283 years |
| DC avg | 0 % |
| ECLASS 5.0 | 27270104 |
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
| Phase Status | Phased Out |
