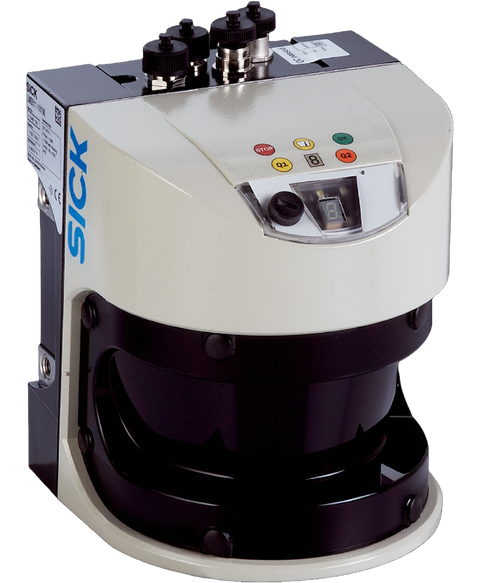

SICK LMS511-10100
2d lidar sensor, 1-80 meter working range, 40 meter scanning range @ 10% remission, standard resolution, scanning frequency: 25Hz , 35Hz , 50Hz , 75Hz , 100Hz, 190 degree field of view, 4 x m12 round connector, 24VDC supply, IP65 , IP67, (1046135)
This SICK LMS511-10100 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Laser scanners range and is referenced internally as PartLogic SKU PL26805753133.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Application | Outdoor, Indoor |
| Variant | PRO |
| Resolution power | Standard Resolution |
| Light source | Infrared (905 nm, ± 10 nm) |
| Laser class | 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Horizontal | 0.042°, interlaced |
| Scanning frequency | 25 Hz 35 Hz 50 Hz 75 Hz 100 Hz |
| Scan field flatness | Scan field flatness combined: ± 0.72° Typical conical error: 1 sigma value - 0.11° ± 0.1° Typical tilt: 1 sigma value + 0.15° ± 0.08° |
| Heating | Self-heating with additional integrated heating |
| Working range | 0.2 m ... 80 m |
| At 10% remission factor | 40 m |
| Measurement accuracy | ± 24 mm |
| Spot size | Divergence: 11.9 mrad At the viewing window: 13.5 mm In 26 m: 322 nm In 40 m: 489 mm |
| Amount of evaluated echoes | 5 |
| Connection type | 4 x M12 round connector |
| Supply voltage | 24 V DC, ± 20 % |
| Power consumption | 22 W, + 55 W heating (typical) |
| Housing material | AlSi12 |
| Housing color | Gray (RAL 7032) |
| Window material | Polycarbonate, scratch-resistant coating |
| Enclosure rating | IP65 (EN 60529, Section 14.2.7) IP67 (EN 60529, Section 14.2.7) |
| Protection class | III (IEC 61140:2016-11) |
| Weight | 3.7 kg |
| Dimensions (L x W x H) | 160 mm x 155 mm x 185 mm |
| MTBF | > 100 years |
| MTTF D | > 100 years |
| Response time | ≥ 10 ms |
| Detectable object shape | Almost any |
| Systematic error | ± 25 mm (1 m ... 10 m) ± 35 mm (10 m ... 20 m) ± 50 mm (20 m ... 30 m) |
| Statistical error | 6 mm (1 m ... 10 m) 8 mm (10 m ... 20 m) 14 mm (20 m ... 30 m) |
| Integrated application | Field evaluation Output of measurement data |
| Number of field sets | 10 fields |
| Simultaneous evaluation cases | 10 |
| Filter | Echo filter Fog filter Particle filter Average filter Glare filter |
| Ethernet | ✔ , TCP/IP, UDP/IP |
| Function | Extension of outputs |
| Data transmission rate | 20 kBit/s, 500 kBit/s, 1 MBit/s, Synchronization |
| Serial | ✔ , RS-232, RS-422 |
| CAN | ✔ |
| USB | ✔ |
| Remark | Mini-USB |
| Inputs | 4 (Digital, encoder (HTL), synchronization) |
| Outputs | 6 (digital) |
| Optical indicators | 5 LEDs (Additional 7-segment display) |
| Object remission | 2 % ... > 1,000 % (reflectors) |
| Emitted radiation | Industrial environment (IEC 61000-6-3:2020 / EN IEC 61000-6-3:2007+A1:2011) |
| Electromagnetic immunity | Industrial environment (IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019) |
| Sine test | 10 Hz ... 150 Hz, Amplitude 0.35 mm to 5 g, 20 cycles |
| Shock resistance | 15 g, 11 ms, 6 single shocks/axis 10 g, 16 ms, 1,000 continuous shocks/axis |
| Impact resistance | IK05, IK06, IK07 (DIN EN 50102:09-1997) |
| Ambient operating temperature | –30 °C ... +50 °C |
| Storage temperature | –40 °C ... +70 °C |
| Ambient light immunity | 70,000 lx |
| Note on use | The sensor does not constitute a safety component as defined by relevant legislation on machine safety. |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| KC Mark certificate | ✔ |
| cTUVus certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27270990 |
| ECLASS 5.1.4 | 27270990 |
| ECLASS 6.0 | 27270913 |
| ECLASS 6.2 | 27270913 |
| ECLASS 7.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 8.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 10.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 41111615 |
