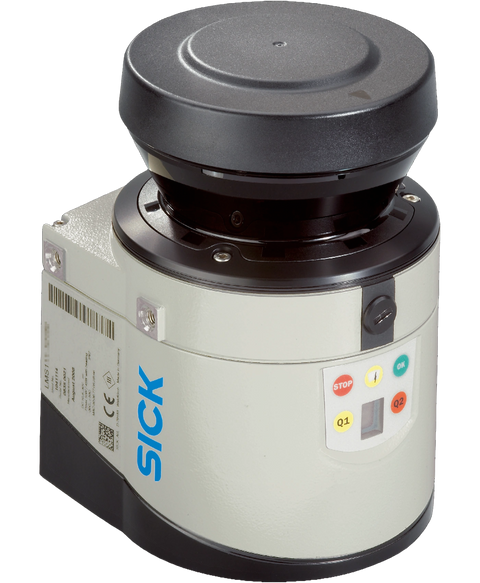

SICK LMS111-10100
Lidar laser sensor, 0.5-20 meter scanning range, 10.8-30VDC, 25-50Hz scanning frequency, m12 connector, 2 digital , encoder inputs, 3 digtal output, -30 to 50 degree c, IP67, (1041114)
This SICK LMS111-10100 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Laser scanners range and is referenced internally as PartLogic SKU PL26805596353.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Application | Outdoor, Indoor |
| Light source | Infrared (905 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Horizontal | 0.25° |
| Scanning frequency | 25 Hz 50 Hz |
| Heating | Yes |
| Working range | 0.5 m ... 20 m |
| At 10% remission factor | 18 m |
| At 90% remission factor | 20 m |
| Amount of evaluated echoes | 2 |
| Fog correction | Yes |
| Connection type | 1 x M12 round connector |
| Supply voltage | 10.8 V DC ... 30 V DC |
| Power consumption | Typ. 8 W, heating typ. 35 W |
| Housing color | Gray (RAL 7032) |
| Enclosure rating | IP67 (EN 60529, Section 14.2.7) |
| Protection class | III (EN 61010-1:2010-10) |
| Weight | 1.1 kg |
| Dimensions (L x W x H) | 105 mm x 102 mm x 162 mm |
| MTBF | > 100 years |
| MTTF D | > 100 years |
| Response time | ≥ 20 ms |
| Detectable object shape | Almost any |
| Systematic error | ± 30 mm |
| Statistical error | 12 mm |
| Integrated application | Field evaluation |
| Number of field sets | 10 fields |
| Simultaneous evaluation cases | 10 |
| Ethernet | ✔ , TCP/IP |
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 9.6 kBaud ... 115.2 kBaud |
| Serial | ✔ , RS-232 |
| CAN | ✔ |
| Inputs | 2 digital and 2 encoder inputs |
| Outputs | 3 |
| Optical indicators | 7-segment display (plus 5 LEDs showing device status, contamination warning and initial condition) |
| Object remission | 3 % ... > 1,000 % (reflectors) |
| Electromagnetic compatibility (EMC) | EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011 |
| Vibration resistance | EN 60068-2-6 (1995-04) |
| Shock resistance | EN 60068-2-27 (1993-03) |
| Ambient operating temperature | –30 °C ... +50 °C |
| Storage temperature | –30 °C ... +70 °C |
| Ambient light immunity | 80,000 lx |
| Note on use | The sensor does not constitute a safety component as defined by relevant legislation on machine safety. |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cTUVus certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27270990 |
| ECLASS 5.1.4 | 27270990 |
| ECLASS 6.0 | 27270913 |
| ECLASS 6.2 | 27270913 |
| ECLASS 7.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 8.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 10.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 41111615 |
