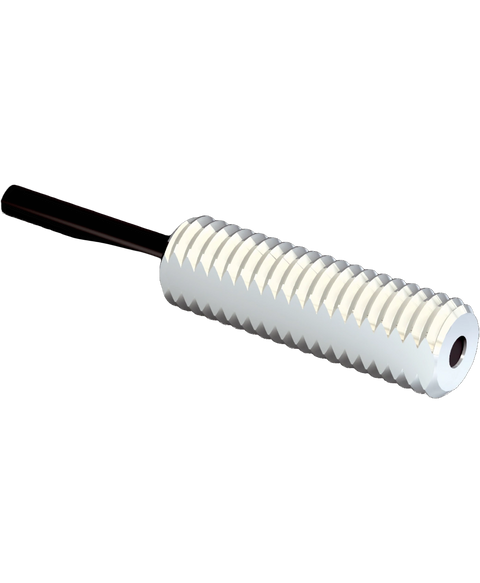

SICK LL3-TR02
(5308053) plastic fiber-optic, individual, m3 tip, high flex (4mm bed radius),ll3-tr02 fiber optic, ll3-tr02 light guid
This SICK LL3-TR02 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Fiber optic sensors range and is referenced internally as PartLogic SKU PL26805606811.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device type | Fiber-optic cables |
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Threaded sleeve |
| Application | High flexible (static), Robotics (dynamic flexible) |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T) |
| Sensing range max. | 1,310 mm (Sensing range of WLL80 at 8 ms) |
| Minimal object diameter | 0.1 mm |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | ✔ |
| Adapter end sleeves required | Yes |
| Included with delivery | Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) |
| Light emission | Axial |
| Thread diameter (housing) | M3 |
| Fiber length | 2,000 mm |
| Bending radius | 4 mm |
| Dynamic flexibility (robotics) | Yes |
| Outside diameter, optical fiber cable connection | 1 mm |
| Fiber arrangement | Multi-fiber |
| Core structure | 4 x Ø 0.25 mm Multi-fiber |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 20 g |
| Ambient operating temperature | –40 °C ... +70 °C |
| Operating mode 50 µs | 135 mm |
| Operating mode 250 µs | 385 mm |
| Operating mode 1 ms | 530 mm |
| Operating mode 4 ms | 970 mm |
| Operating mode 16 µs | 85 mm |
| Operating mode 70 µs | 265 mm |
| Operating mode 500 µs | 525 mm |
| Operating mode 2 ms | 865 mm |
| Operating mode 8 ms | 1,310 mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
| ECLASS 5.0 | 27270905 |
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
