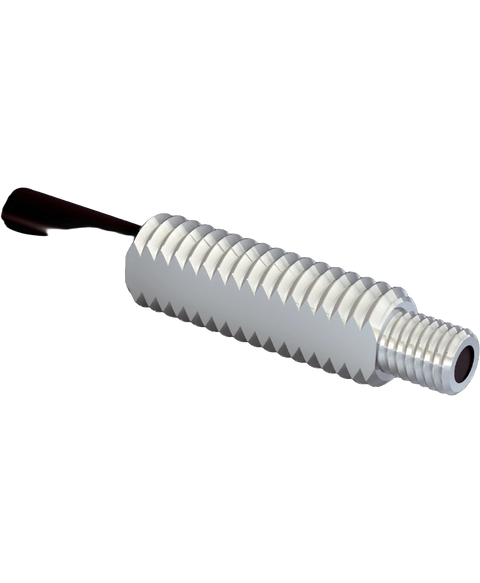

SICK LL3-TB01
Fiber-optic cable, through0beam system, 2000mm length, pmma fiber, pe jacket, stainless steel head, m4 thread diameter, monofiber, for gll170(t) , wll180t , wll24 ex , wll80, (5308050)
This SICK LL3-TB01 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Fiber optic sensors range and is referenced internally as PartLogic SKU PL26801463311.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device type | Fiber-optic cables |
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Threaded sleeve |
| Application | Standard |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Minimal object diameter | 0.5 mm |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Compatibility tip adapters | Yes |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | ✔ |
| Adapter end sleeves required | No |
| Included with delivery | Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141) |
| Light emission | Axial |
| Thread diameter (housing) | M4 |
| Optical fiber taper diameter | ≥ 2.6 mm |
| Optical fiber taper length after 2 mm | ≥ 3 mm |
| Fiber length | 30,000 mm |
| Bending radius | 30 mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2 mm |
| Fiber arrangement | Singlefiber |
| Core structure | Ø 1.5 mm Singlefiber |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 26 g |
| Ambient operating temperature | –40 °C ... +70 °C |
| Operating mode 16 µs | 160 mm |
| Operating mode 70 µs | 450 mm |
| Operating mode 250 µs | 840 mm |
| Operating mode 2 ms | 1,700 mm |
| Operating mode 8 ms | 2,800 mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
| ECLASS 5.0 | 27270905 |
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
