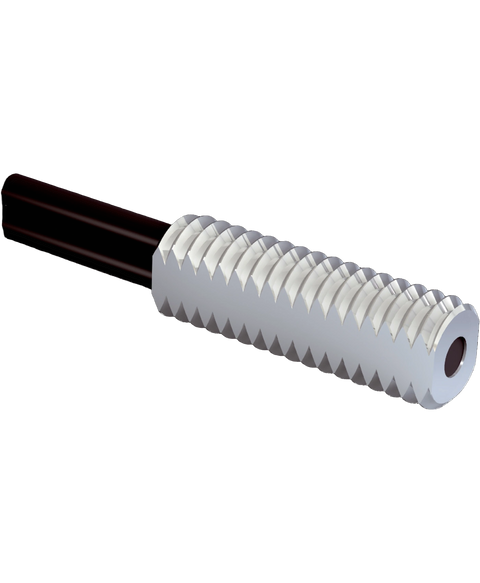

SICK LL3-DM02
(5308077) plastic fiber-optic, bifurcated, m4 tip, coaxial, long sensing range,ll3-dm02 fiber optic, ll3-dm02 light guid
This SICK LL3-DM02 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Fiber optic sensors range and is referenced internally as PartLogic SKU PL26805599141.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device type | Fiber-optic cables |
| Functional principle | Proximity system |
| Fiber-optic head design | Threaded sleeve |
| Application | Standard |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T) |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Minimal object diameter | 0.015 mm |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Compatibility tip adapters | Yes |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | ✔ |
| Adapter end sleeves required | Yes |
| Included with delivery | Mounting, 2 x M4 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) |
| Light emission | Axial |
| Thread diameter (housing) | M4 |
| Fiber length | 3,000 mm |
| Bending radius | 15 mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 1.3 mm |
| Fiber arrangement | Coaxial |
| Core structure | S: Ø 0,5 mm, R: 9 x Ø 0,25 mm Coaxial |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 23 g |
| Ambient operating temperature | –40 °C ... +70 °C |
| Operating mode 16 µs | 40 mm |
| Operating mode 70 µs | 130 mm |
| Operating mode 250 µs | 200 mm |
| Operating mode 2 ms | 350 mm |
| Operating mode 8 ms | 600 mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
| ECLASS 5.0 | 27270905 |
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
