SICK LL3-DB01

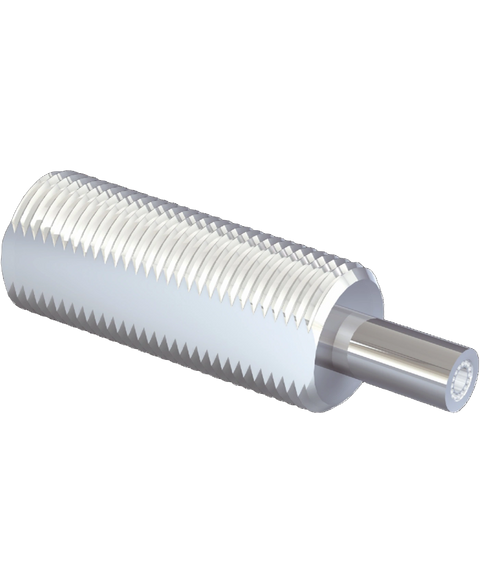

Fiber-optic cable, 2 m fiber length, bifurcated, m6 thread, stainless steel optical fiber head, polyethylen sheath, polymethylmethacrylat fibers, (5308074)
This SICK LL3-DB01 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Fiber optic sensors range and is referenced internally as PartLogic SKU PL26801454006.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device type | Fiber-optic cables |
| Functional principle | Proximity system |
| Fiber-optic head design | Threaded sleeve |
| Application | Standard |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180 |
| Sensing range max. | 1,250 mm (Sensing range of WLL80 at 8 ms) |
| Minimal object diameter | 0.015 mm |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | ✔ |
| Adapter end sleeves required | No |
| Included with delivery | Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) |
| Light emission | Axial |
| Thread diameter (housing) | M6 |
| Optical fiber taper diameter | ≥ 2.8 mm |
| Optical fiber taper length after 2 mm | ≥ 5 mm |
| Fiber length | 2,000 mm |
| Bending radius | 25 mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2 mm |
| Fiber arrangement | Coaxial |
| Core structure | S: Ø 1 mm, R: 16 x Ø 0,25 mm Coaxial |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 31 g |
| Ambient operating temperature | –40 °C ... +70 °C |
| Operating mode 50 µs | 200 mm |
| Operating mode 250 µs | 500 mm |
| Operating mode 1 ms | 700 mm |
| Operating mode 4 ms | 1,250 mm |
| Operating mode 16 µs | 120 mm |
| Operating mode 70 µs | 300 mm |
| Operating mode 500 µs | 600 mm |
| Operating mode 2 ms | 800 mm |
| Operating mode 8 ms | 1,250 mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
| Operating mode 200 µs | 2 mm |
| ECLASS 5.0 | 27270905 |
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
