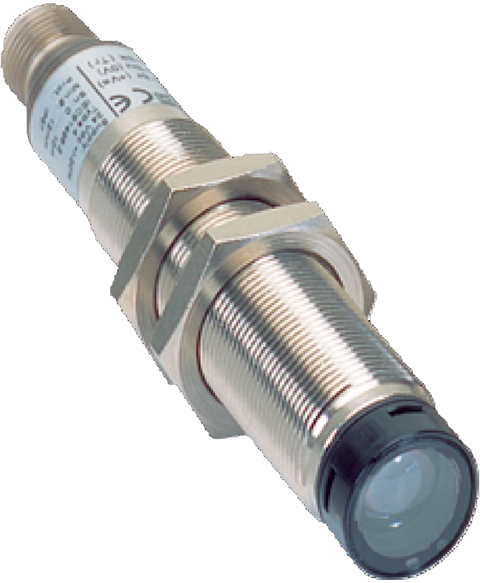

SICK L40E-21MA1A
Safety beam sensor, receiver, 16 meter scanning range, 19.2-28.8VDC (24VDC nominal), 30-60mA, 30mm detection, single beam, 0.4 ms response time, m12 4 pin male straight connector, nickel plated brass housing, -20 to 55 degree c, IP67, (6027340)
This SICK L40E-21MA1A is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety light curtains range and is referenced internally as PartLogic SKU PL26805610776.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Scanning range | 16 m |
| Number of beams | 1 |
| Detection capability | 30 mm |
| Optical axis | Axial |
| Response time | 0.4 ms + Test device response time (UE401) |
| Type | Type 4 (IEC 61496-1) |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFH D (mean probability of a dangerous failure per hour) | 2.9 x 10 (EN ISO 13849) |
| T M (mission time) | 20 years (EN ISO 13849) |
| Connection type | Male connector M12, 4-pin, straight |
| Display elements | LED |
| Protection class | III (IEC 61140) |
| Supply voltage V S | 24 V DC (19.2 V DC ... 28.8 V DC) |
| Power consumption | ≤ 30 mA |
| Design | Cylindrical |
| Dimensions (diameter x length) | M18 x 97.7 mm |
| Housing material | Nickel-plated brass |
| Front screen material | Glass |
| Weight | 67 g |
| Enclosure rating | IP67 (EN 60529) |
| Ambient operating temperature | –20 °C ... +55 °C |
| Storage temperature | –25 °C ... +75 °C |
| Air humidity | 15 % ... 95 %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6) |
| Shock resistance | 10 g, 16 ms (IEC 60068-2-27) |
| Aperture angle/receiving angle | ± 2.5° / ± 2.5° |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| ECLASS 5.0 | 27272701 |
| ECLASS 5.1.4 | 27272701 |
| ECLASS 6.0 | 27272701 |
| ECLASS 6.2 | 27272701 |
| ECLASS 7.0 | 27272701 |
| ECLASS 8.0 | 27272701 |
| ECLASS 8.1 | 27272701 |
| ECLASS 9.0 | 27272701 |
| ECLASS 10.0 | 27272701 |
| ECLASS 11.0 | 27272701 |
| ECLASS 12.0 | 27272701 |
| ETIM 5.0 | EC001831 |
| ETIM 6.0 | EC001831 |
| ETIM 7.0 | EC001831 |
| ETIM 8.0 | EC001831 |
| UNSPSC 16.0901 | 46171620 |
