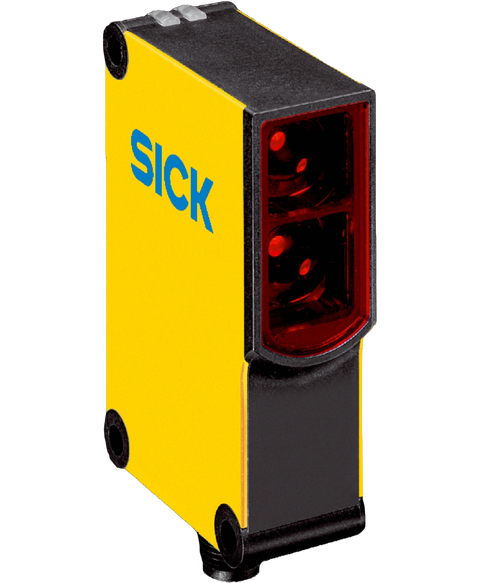

SICK L27S-3D2450
Discontinued by manufacturer, (2043877) l27 sender, plastic housing, range 25m, m12x4, heated front screen, photoelectric
This SICK L27S-3D2450 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety light curtains range and is referenced internally as PartLogic SKU PL26805614071.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Light source | LED |
| Type of light | Visible red light |
| Scanning range | 35 m |
| Number of beams | 1 |
| Response time | 0.68 ms | 0.68 ms + Test device response time |
| Front screen heating | ✔ |
| Type | Type 2 (IEC 61496-1) 1) |
| Safety integrity level | SIL 1 (IEC 61508) 1) |
| Category | Category 2 (EN ISO 13849) 1) |
| Test rate (external test) | 100 /s (EN ISO 13849) 2) |
| Maximum demand rate | 60 min⁻¹ (EN ISO 13849) 3) |
| Performance level | PL c (EN ISO 13849) 1) |
| PFH D (mean probability of a dangerous failure per hour) | 1.0 x 10 -6 (EN ISO 13849) 1) |
| T M (mission time) | 20 years (EN ISO 13849) |
| Connection type | Male connector M12, 4-pin, straight |
| Display elements | LED |
| Protection class | II (IEC 61140) |
| Supply voltage V S | 24 V DC (19.2 V DC ... 28.8 V DC) |
| Power consumption | ≤ 35 mA |
| Power consumption (with heating) | ≤ 50 mA |
| Test input voltage | > 15 V or not connected (Sender on) 1) 1) |
| Test input response time | ≤ 2.6 ms 2) |
| Design | Rectangular |
| Dimensions (W x H x D) | 24.6 mm x 92.8 mm x 54 mm |
| Housing material | ABS (plastic) |
| Weight | + 100 g |
| Enclosure rating | IP67 (EN 60529) |
| Ambient operating temperature | –40 °C ... +60 °C |
| Storage temperature | –40 °C ... +75 °C |
| Air humidity | 15 % ... 95 %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6) |
| Shock resistance | 10 g, 16 ms (IEC 60068-2-27) |
| Wave length | 660 nm |
| Light spot diameter (distance) | 200 mm (10 m) |
| Aperture angle/receiving angle | ± 5° / ± 5° |
| ECLASS 5.0 | 27272701 |
| ECLASS 5.1.4 | 27272701 |
| ECLASS 6.0 | 27272701 |
| ECLASS 6.2 | 27272701 |
| ECLASS 7.0 | 27272701 |
| ECLASS 8.0 | 27272701 |
| ECLASS 8.1 | 27272701 |
| ECLASS 9.0 | 27272701 |
| ECLASS 10.0 | 27272701 |
| ECLASS 11.0 | 27272701 |
| ECLASS 12.0 | 27272701 |
| ETIM 5.0 | EC001831 |
| ETIM 6.0 | EC001831 |
| ETIM 7.0 | EC001831 |
| ETIM 8.0 | EC001831 |
| UNSPSC 16.0901 | 46171620 |
| Phase Status | Phased Out |
