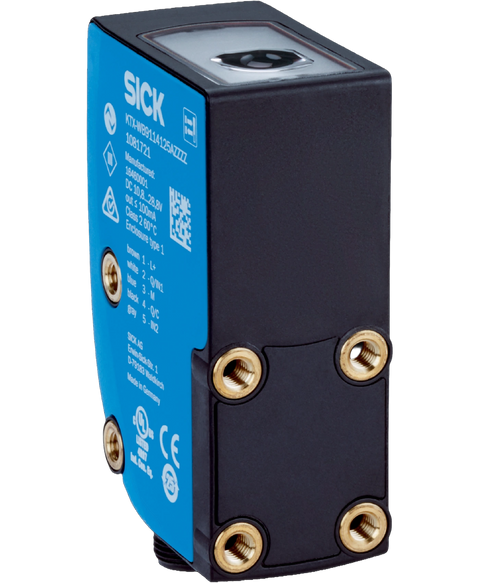

SICK KTX-WN91142252ZZZZ
Contrast sensor, 13mm sensing distance, 10.8-28.8VDC, 100mA, light,dark switching, npn switching output, m12 5-pin male connector, -20 to +60 degrees c, IP67, 1078067
This SICK KTX-WN91142252ZZZZ is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Contrast sensors range and is referenced internally as PartLogic SKU PL26805607894.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Parameter presettings | None |
| Special applications | Standard |
| Device type | Standard |
| Housing design | Large |
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Light source | LED, RGB |
| Light emission | Short device side |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical |
| Receiving filters | None |
| Wave length | 470 nm, 525 nm, 625 nm |
| Sensing distance | ≤ 13 mm |
| Sensing distance tolerance | ± 5 mm |
| Teach-in mode | 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode |
| Output function | Light/dark switching |
| Delay time | Adjustable |
| Setting the key lock | Standard |
| Delivery status | 2-point teach-in |
| MTTF D | 291 years |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Ripple | ≤ 5 V pp |
| Current consumption | < 100 mA |
| Switching frequency | 50 kHz |
| Jitter | 5 µs |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = V S / LOW ≤ 3 V |
| Output current I max. | 100 mA |
| Input, teach-in (ET) | Teach: U < 2 V |
| Input, blanking input (AT) | Blanked: U < 2 V |
| Input, fine/coarse (F/C) | Coarse: U < 2 V |
| Input, light/dark (L/D) | Light: U < 2 V |
| Retention time (ET) | 25 ms, non-volatile memory |
| Time delay | None |
| Protection class | III |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | VISTAL® |
| Optics material | COP |
| Weight | 94 g |
| Ambient operating temperature | –20 °C ... +60 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Shock load | According to IEC 60068-2-27 (30 g/11 ms) |
| Enclosure rating | IP67 |
| UL File No. | E181493 |
| ECLASS 5.0 | 27270906 |
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
