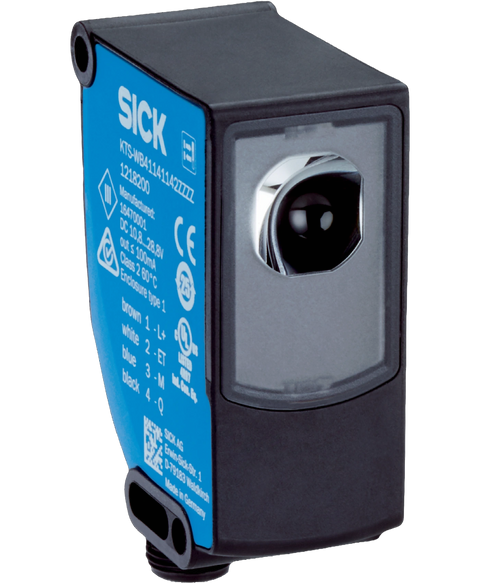

SICK KTS-WB41141142ZZZZ
(1218200), contrast sensor, kts core, easy teach, 13mm sensing distance, 10.8 -28.8VDC, 100mA, pnp,npn push-pull, light,dark switching, m12 4-pin male connector, IP67, (1218200)
This SICK KTS-WB41141142ZZZZ is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Contrast sensors range and is referenced internally as PartLogic SKU PL26805680176.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Parameter presettings | None |
| Special applications | Standard |
| Device type | Easy Teach |
| Housing design | Middle |
| Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm |
| Light source | LED, RGB |
| Light emission | Long side of housing |
| Light spot size | 1.2 mm x 3.9 mm |
| Light spot direction | Vertical |
| Receiving filters | None |
| Wave length | 470 nm, 525 nm, 625 nm |
| Sensing distance | ≤ 13 mm |
| Sensing distance tolerance | ± 3 mm |
| Teach-in mode | 2-point teach-in |
| Output function | Light/dark switching |
| Delay time | - |
| Setting the key lock | Standard |
| Delivery status | 2-point teach-in |
| MTTF D | 291 years |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Ripple | ≤ 5 V pp |
| Current consumption | < 100 mA |
| Switching frequency | 25 kHz |
| Jitter | 10 µs |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = U V - 3 V/LOW ≤ 3 V |
| Output current I max. | 100 mA |
| Input, teach-in (ET) | Teach: U = 10 V ... S |
| Retention time (ET) | 35 ms, non-volatile memory |
| Time delay | None |
| Protection class | III |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | VISTAL® |
| Optics material | COP |
| Weight | 68 g |
| Ambient operating temperature | –20 °C ... +60 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Shock load | According to IEC 60068-2-27 (30 g/11 ms) |
| Enclosure rating | IP67 |
| UL File No. | E181493 |
| ECLASS 5.0 | 27270906 |
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
