SICK KTM-WN11181P

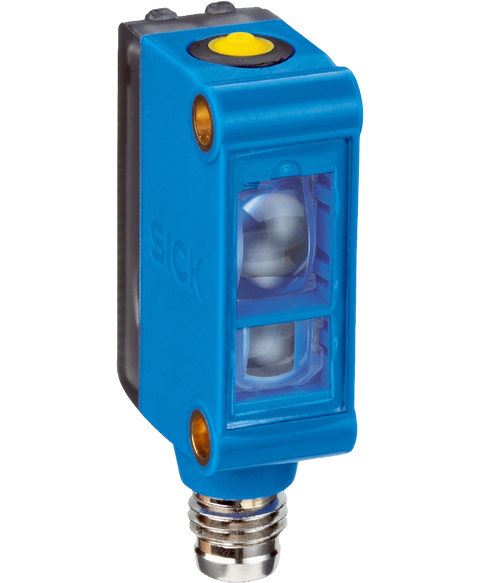

(1062200), contrast sensor, npn, 12.5mm, rectangular, led, rgb, 50mA, connector m8, 4-pin
This SICK KTM-WN11181P is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Contrast sensors range and is referenced internally as PartLogic SKU PL26805605524.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing design | Small |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Light source | LED, RGB |
| Light emission | Long side of housing |
| Light spot size | 1.6 mm x 9.5 mm |
| Light spot direction | Vertical |
| Receiving filters | None |
| Wave length | 470 nm, 525 nm, 625 nm |
| Sensing distance | ≤ 12.5 mm |
| Sensing distance tolerance | ± 3 mm |
| Display | LED indicator green: power on LED indicator, yellow: Status switching output Q |
| Adjustment | Teach-in button |
| Teach-in mode | 2-point teach-in static/dynamic + proximity to mark ET: Teach-in dynamic |
| Supply voltage | 12 V DC ... 24 V DC |
| Ripple | ≤ 5 V pp |
| Current consumption | < 50 mA |
| Switching frequency | 15 kHz |
| Response time | 32 µs |
| Jitter | 15 µs |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = approx. U V / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current I max. | 50 mA |
| Input, dynamic teach-in (ET) | NPN: Teach: U NPN: Run: U V - 2 V or open |
| Retention time (ET) | 28 ms, non-volatile memory |
| Time delay | None |
| Protection class | III |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | ABS |
| Optics material | PMMA |
| Weight | 20 g |
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –20 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| Enclosure rating | IP67 |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| BN 1 | + (L+) |
| WH 2 | ET |
| BU 3 | - (M) |
| BK 4 | Q |
| ECLASS 5.0 | 27270906 |
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
