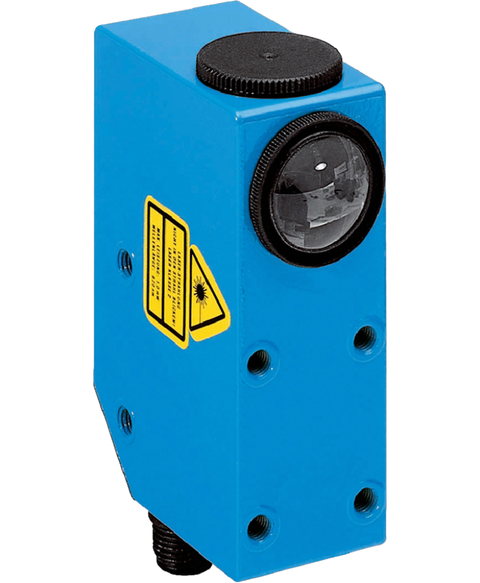

SICK KT8L-P3656
(1041262), contrast sensor, 150mm sensing distance, 30-800mm operating distance, red laser (655 nm wavelength), 0.3mm spot size, pnp output, 10-30VDC, 0.3-20mA, 20 ms time delay, 5-pin m12 connector, IP67, (1041262)
This SICK KT8L-P3656 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Contrast sensors range and is referenced internally as PartLogic SKU PL26805616929.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing design | Large |
| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Light source | Laser, visible red light |
| Light emission | Long side of housing |
| Light spot size | Ø 0.3 mm |
| Light spot direction | Round |
| Wave length | 655 nm |
| Laser class | II (EN 60825-1:2014), IEC 60825-1:2014 |
| Operating distance | 30 mm ... 800 mm |
| Sensing distance | ≤ 150 mm |
| Sensing distance tolerance | - 120 mm / + 650 mm |
| Adjustment | Teach-in button |
| Teach-in mode | Static 2-point teach-in Dynamic teach-in (min/max) |
| Function | Automatic drift correction |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 5 V pp |
| Current consumption | < 80 mA |
| Switching frequency | 17 kHz |
| Response time | 30 µs |
| Jitter | < 15 µs |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = U V ≤ 2 V / LOW approx. 0 V |
| Analog output | 0.3 mA ... 20 mA |
| Output current I max. | 100 mA |
| Input, teach-in (ET) | PNP Teach: U = 10 V ... V Run: U < 2 V |
| Retention time (ET) | 25 ms, non-volatile memory |
| Time delay | Deactivation delay 20 ms, shiftable |
| Protection class | II |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | Zinc diecast |
| Optics material | Glass |
| Weight | + 400 g |
| Ambient operating temperature | –10 °C ... +45 °C |
| Ambient temperature, storage | –10 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| Enclosure rating | IP67 |
| UL File No. | 242368, CDRH-conform |
| ECLASS 5.0 | 27270906 |
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Laser safety (IEC 60825-1) declaration of manufacturer | ✔ |
