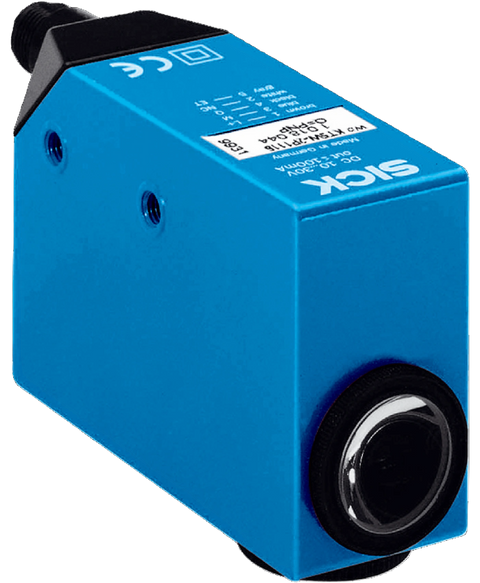

SICK KT5W-2P2113
Discontinued by manufacturer, contrast sensor, 10mm sensing distance, 10-30VDC, 80mA, pnp output, m12 5-pin male connector, -10 to +55 degrees c, IP67
This SICK KT5W-2P2113 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Contrast sensors range and is referenced internally as PartLogic SKU PL26805754413.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing design | Middle |
| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Light source | LED, RGB 1) |
| Light emission | Long and short side of housing, exchangeable |
| Light spot size | 1.2 mm x 4.2 mm |
| Light spot direction | Horizontal 2) |
| Wave length | 470 nm, 525 nm, 640 nm |
| Sensing distance | ≤ 10 mm 3) |
| Adjustment | Teach-in button |
| Teach-in mode | Teach-in dynamic |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | ≤ 5 V pp 2) |
| Current consumption | 3) |
| Switching frequency | 10 kHz 4) |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = U V ≤ 2 V / LOW approx. 0 V |
| Output current I max. | 100 mA 5) |
| Input, teach-in (ET) | PNP Teach: U = 10 V ... V Run: U |
| Input, light/dark (L/D) | PNP Light: U = 0 V Dark: U > 10 V ... V |
| Retention time (ET) | 25 ms, non-volatile memory |
| Time delay | None |
| Protection class | II 6) |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | Zinc diecast |
| Weight | 400 g |
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| Enclosure rating | IP67 |
| EU declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270906 |
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
