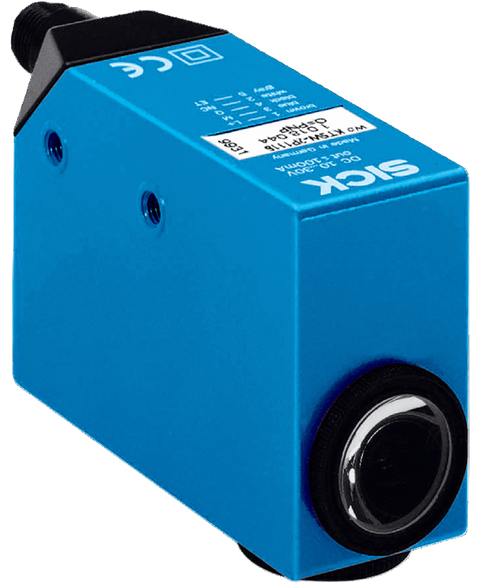

SICK KT5W-2P1116
Discontinued by manufacturer, contrast sensor, 10mm sensing distance, 10 - 30VDC, 80mA, pnp output, m12, 5-pin, male connector, 10 to +55 degrees c, IP67, (1018044)
This SICK KT5W-2P1116 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Contrast sensors range and is referenced internally as PartLogic SKU PL26801367363.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Sensing distance | ≤ 10 mm 1) |
| Housing design | Rectangular |
| Light source | LED, RGB 2) |
| Wave length | 470 nm, 525 nm, 640 nm |
| Light emission | Long and short side of housing, exchangeable |
| Light spot size | 1.2 mm x 4.2 mm |
| Light spot direction | Vertical 3) |
| Adjustment | Teach-in button |
| Teach-in mode | Static 2-point teach-in |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | ≤ 5 V pp 2) |
| Current consumption | 3) |
| Switching frequency | 10 kHz 4) |
| Response time | 50 µs 5) |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = U V ≤ 2 V / LOW approx. 0 V |
| Output current I max. | 100 mA 6) |
| Input, teach-in (ET) | PNP Teach: U = 10 V ... V Run: U |
| Retention time (ET) | 25 ms, non-volatile memory |
| Time delay | None |
| Protection class | II 7) |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | Zinc diecast |
| Connection type | Plug, M12, 5-pin |
| Weight | 400 g |
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| Enclosure rating | IP67 |
| EU declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270906 |
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
