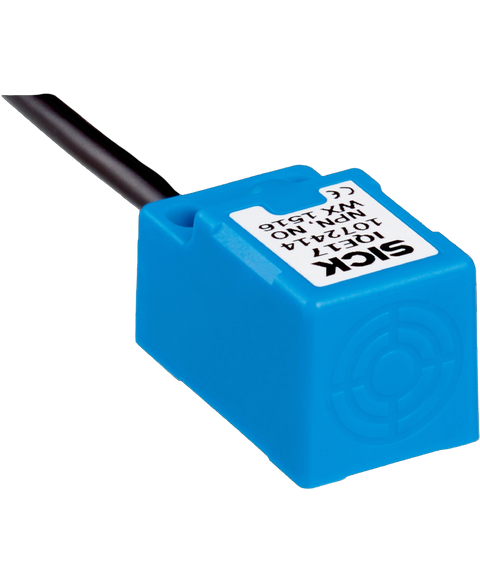

SICK IQE17-05NNSKW2S
Inductive proximity sensor, 5mm sensing range, 10-30VDC, non-flush, npn, 3wire 2m cable, IP67, 1072414
This SICK IQE17-05NNSKW2S is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805599351.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing | Rectangular |
| Dimensions (W x H x D) | 17 mm x 17 mm x 29.5 mm |
| Sensing range S n | 5 mm |
| Safe sensing range S a | 4.05 mm |
| Installation type | Non-flush |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Switching output | NPN |
| Switching output detail | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | ≤ 2 % |
| Temperature drift (of S r ) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current I a | ≤ 200 mA |
| No load current | 10 mA |
| Cable material | PVC |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Power-up pulse protection | Yes |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Plastic |
| Tightening torque, max. | 0.9 Nm |
| UL File No. | E348498 |
| MTTF D | 1,862 years |
| DC avg | 0 % |
| T M (mission time) | 20 years |
| Note | The values are reference values which may vary |
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Typ. 0.7 |
| Aluminum (Al) | Typ. 0.43 |
| Copper (Cu) | Typ. 0.3 |
| Brass (Br) | Typ. 0.4 |
| Remark | Associated graphic see "Installation" |
| A | 17 mm |
| B | 34 mm |
| C | 17 mm |
| D | 15 mm |
| E | 10 mm |
| F | 40 mm |
| G | 25.5 mm |
| ECLASS 5.0 | 27270101 |
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
